SANY STH1056A Telehandlers for Sale or Rent

Finance a brand new Sany STH1056A Telehandler today with the best 3 year 3,000 warranty! We've got Sany STH1056A Telehandlers in stock and ready for your next rental or sale! Give us a call today!

SEE INVENTORY CALL 859.485.8500

sany-STH-1056A-Telehandler-available-for-sale-or-rental-near-yousany-STH-1056A-Telehandler-available-for-sale-or-rental-near-you

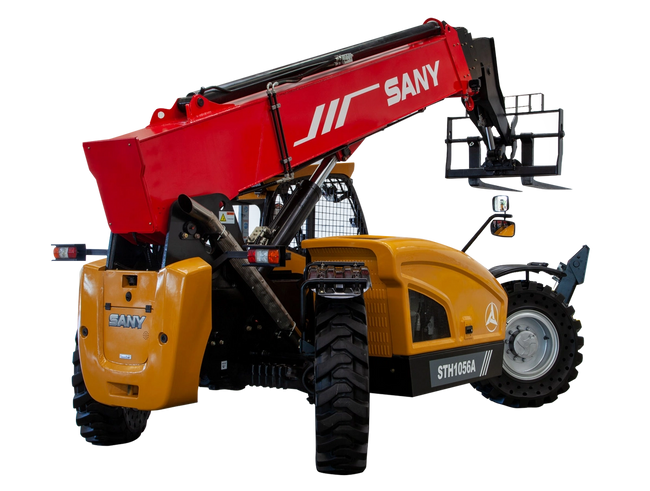

STH1056A TELEHANDLER

Gross Power: 130hp

Max Lift Height: 56' 2"

Wheel Base: 10' 6"/11' 5"

Operating Weight: 33,290 lb

sany-heavy-equipment-logosany-heavy-equipment-logo

Sany STH1056A Telehandlers

Newman Tractor is an authorized Sany equipment dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for financing deals or for a free Sany STH1056A Telehandlers on-site demo! 859-485-8500

New STH1056A Telehandlers

The SMG200 has direct-drive power shift transmission that delivers smooth, responsive shifting and increased efficiency. The variable power technology matches different power curves according to the working conditions which lowers fuel consumption. The optional intelligent fan cooling system monitors the system's temperature in real-time. A hydraulic motor controls the speed of the fan, resulting in low power consumption and low noise. The load sensing hydraulic system distributes flow to different mechanisms according to actual needs This system responds rapidly and precisely, resulting in superb leveling quality.

Our Sany Sany Telehandlers For Sale

sany-telehandlers-for-sale-todaysany-telehandlers-for-sale-today

Sany 1065a Telehandler Specs

sany-1065a-telehandler-specssany-1065a-telehandler-specs

sany-1065a-telehandler-weight-lift-chartsany-1065a-telehandler-weight-lift-chart

OVERALL DIMENSIONS

Maximum Lift Height: 56' 2"

Maximum Forward Reach: 42' 11"

Height, Stowed: 8' 4"

Length, Stowed: 20' 7"

Width: 8' 5"

Wheelbase: 11' 5"

Ground Clearance (Center): 1' 6"

Ground Clearance (Axle): 1' 6"

Weight: 33,290 lb

CAPACITIES

Torque: 360 lbf

Electrical System: 12v

Hydraulic Tank Capacity: 33 gal

Hydraulic System Capacity: 42 gal

Fuel Tank Capacity: 36 gal

sany-1065a-telehandler-lift-angle-chartsany-1065a-telehandler-lift-angle-chart

PERFORMANCE

Maximum Lift Capacity: 10,000 lb

Lift Capacity at Maximum: 5,000 lb

Lift Capacity at Maximum Reach: 3,000 lb

Boom (Raise/Lower): 11 sec/ 14 sec

Boom (Extend/Retract): 15 sec/ 16 sec

Frame Leveling: +/- 10 degrees

Maximum Drive Speed: 20 mph

Outside Turning Radius (4WS): 14' 11"

Auxiliary Hydraulic Flow: 17 GPM

Auxiliary Hydraulic Pressure: 2,466 psi

Standard Tire Size: 400/75-28

COMPONENTS

Engine: Cummins QSF3.8

Transmission: Dana VDT12000

Axles F/R: Dana 223/ Dana 212

Hydraulic Pump: Kawasaki Load Sense Piston Pump

Hydraulic Manifold: Parker

sany-sth-1056-telehandler-machine-featuressany-sth-1056-telehandler-machine-features

Sany STH1056A Motor Grader Features

Engine: Cummins QSC 3.8

Transmission: Dana VDT12000

Axles F/ R: Dana 223 / Dana 212

Hyd. Pump: Kawasaki Load Sense

Hydraulic Manifold: Parker


SANY STH-1056A Telehandler Parts

sany-sth-1056a-telehandler-parts-for-salesany-sth-1056a-telehandler-parts-for-sale

Here at Newman Tractor, our Parts Department is always ready to answer questions about your Sany STH-1056-A t and deliver the parts you need, when you need them. Get your order started by calling us at 859.888.1588 today!

Looking for A Used Sany Telehandler?

Buying or renting used makes sense for companies on a tight budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used motor grader, Newman Tractor provides the fastest and most cost-effective solution to suit your needs. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models and ages. Use the button below to view our full inventory of used motor graders.

USED TELEHANDLERS FOR SALE

RENT A SANY TELEHANDLER
