SANY STH1056A TELEHANDLERS

Sany STH1056A Telehandlers

Newman Tractor is an authorized Sany equipment dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for financing deals or for a free Sany STH1056A Telehandlers on-site demo! 859-485-8500

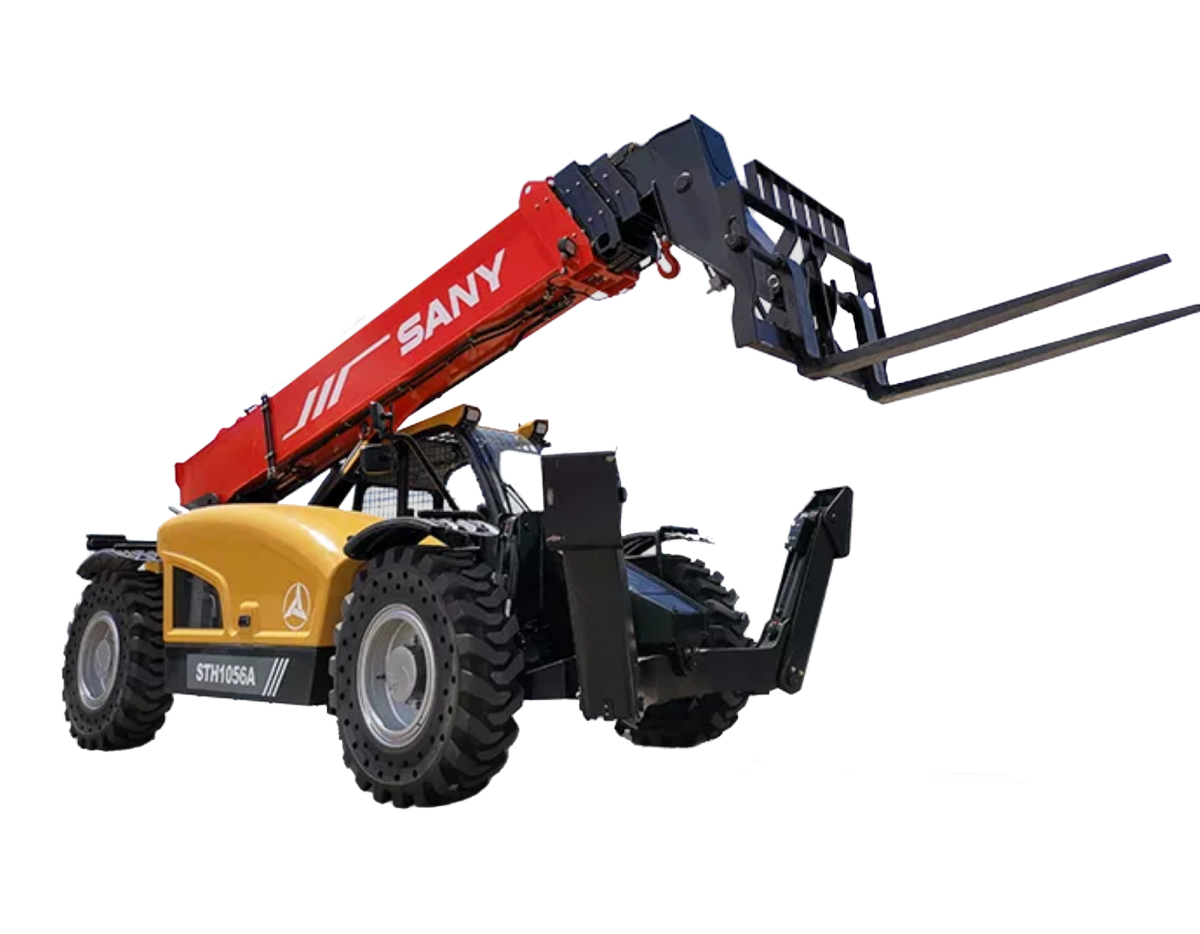

New STH1056A Telehandlers

The STH1056A has direct-drive power shift transmission that delivers smooth, responsive shifting and increased efficiency. The variable power technology matches different power curves according to the working conditions which lowers fuel consumption. The optional intelligent fan cooling system monitors the system's temperature in real-time. A hydraulic motor controls the speed of the fan, resulting in low power consumption and low noise. The load sensing hydraulic system distributes flow to different mechanisms according to actual needs This system responds rapidly and precisely, resulting in superb leveling quality.

Our Telehandlers For Sale

OVERALL DIMENSIONS

Maximum Lift Height: 56' 2"

Maximum Forward Reach: 42' 11"

Height, Stowed: 8' 5"

Length, Stowed: 20' 7"

Width: 8' 6"

Wheelbase: 11' 5"

Ground Clearance (Center): 1' 6"

Ground Clearance (Axle): 1' 6"

Weight: 33,290 lb

CAPACITIES

Torque: 360 lbf-ft

Electrical System: 24 volt

Hydraulic Tank Capacity: 33 gal

Hydraulic System Capacity: 42 gal

Fuel Tank Capacity: 36 gal

PERFORMANCE

Maximum Lift Capacity: 10,000 lb

Lift Capacity at Maximum: 5,000 lb

Lift Capacity at Maximum Reach: 3,000 lb

Boom (Raise/Lower): 14 sec / 11 sec

Boom (Extend/Retract): 16 sec/ 15 sec

Frame Leveling: +/- 10 degrees

Maximum Drive Speed: 17 mph

Outside Turning Radius (4WS): 14' 1"

Auxiliary Hydraulic Flow: 17 GPM

Auxiliary Hydraulic Pressure: 2,466 psi

Standard Tire Size: 14.00-24

COMPONENTS

Engine: Deutz TCD3.6

Transmission: Dana VDT12000

Axles F/R: Dana 223/ Dana 213

Hydraulic Pump: Kawasaki Load Sense Piston Pump

Hydraulic Manifold: Parker

Sany Telehandlers for sale

See More Specs

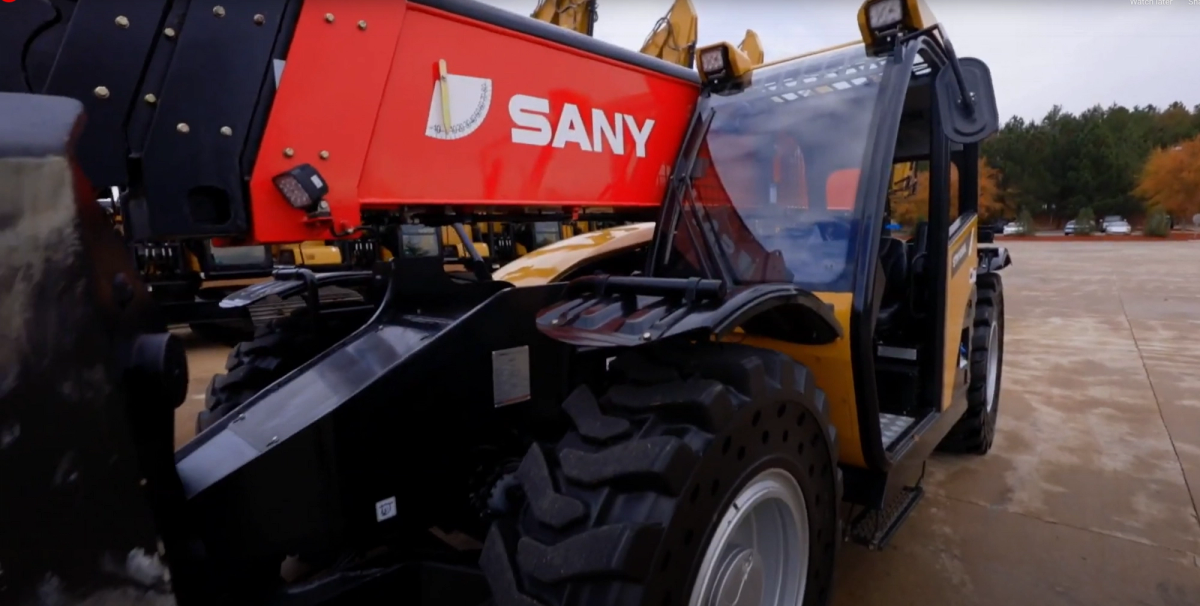

Sany STH1056A Motor Grader Features

Engine: Deutz TCD3.6

Transmission: Dana VDT12000

Axles F/R: Dana 223/ Dana 213

Hydraulic Pump: Kawasaki Load Sense Piston Pump

Hydraulic Manifold: Parker

Looking for A Used Sany Telehandler?

Buying or renting used makes sense for companies on a tight budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used motor grader, Newman Tractor provides the fastest and most cost-effective solution to suit your needs. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models and ages. Use the button below to view our full inventory of used motor graders.

USED TELEHANDLERS FOR SALE

RENT A SANY TELEHANDLER
