SANY SMG 200 Motor Grader

Finance a brand new Sany SMG 200 motor grader today with the best 3 year 3,000 warranty! We've got Sany SMG200 motor graders in stock and ready for your next rental or sale! Give us a call today!



Tier 4f/ Stage IV Certified

Rated Power: 205 hp / 153 kW

Operating Weight: 37,292 lb / 16 920 kg

Overall Length: 36' 6"

Blade Length: 14'

Bell Truck Logo

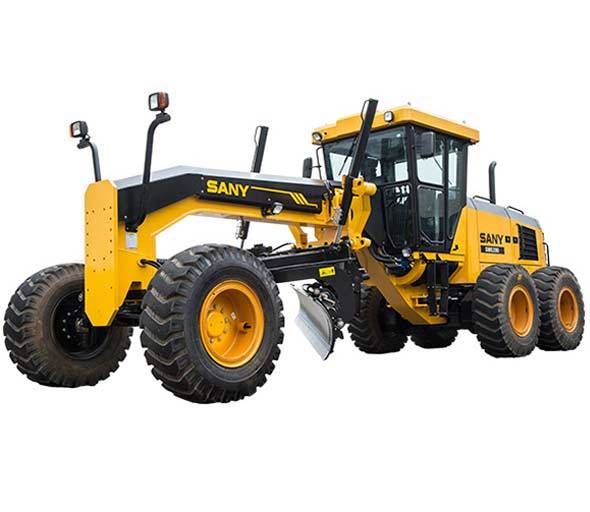

Sany SMG200 Motor Graders For Sale

Newman Tractor is an authorized Sany equipment dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for financing deals or for a free on-site demo! 859-485-8500

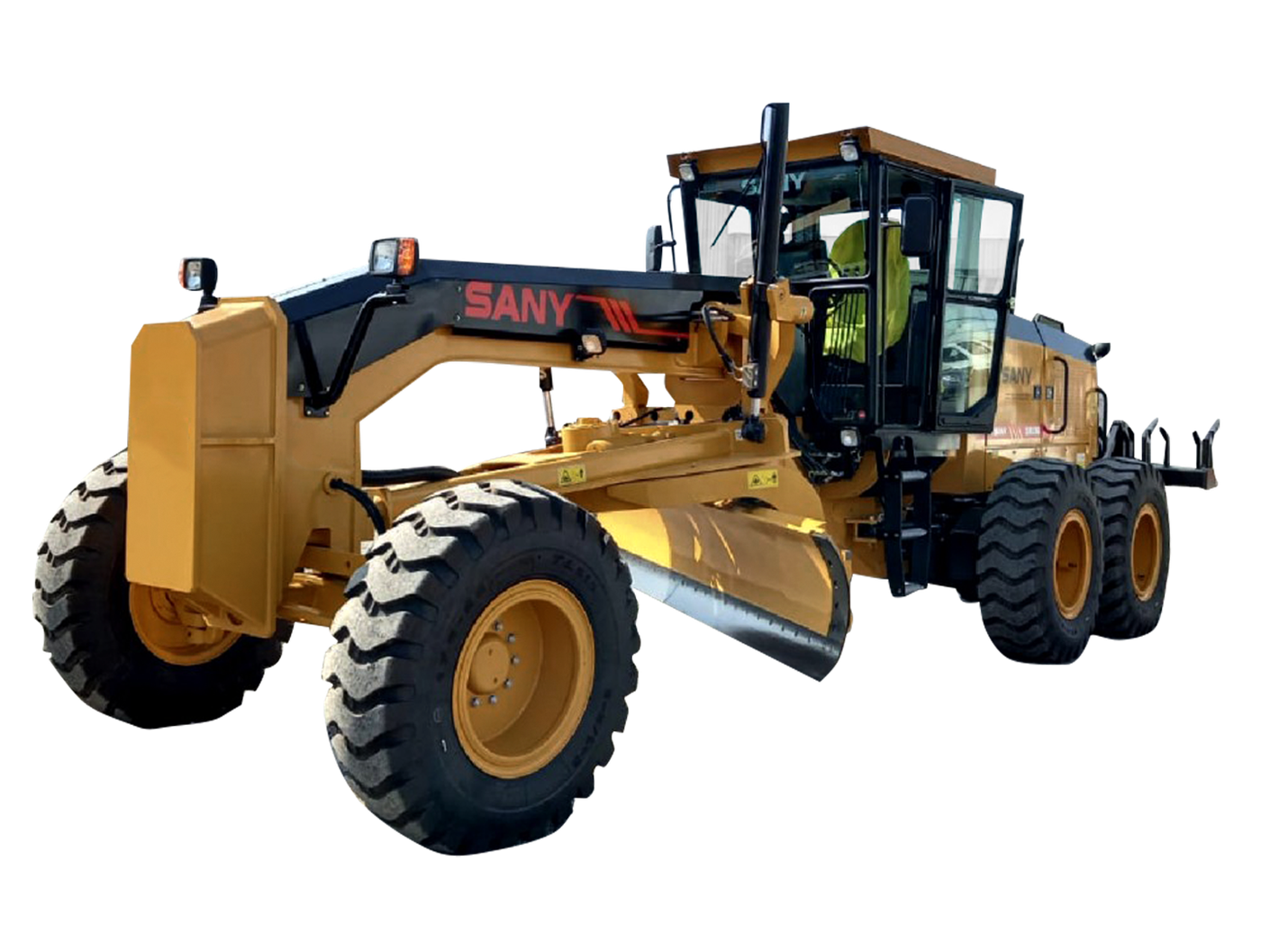

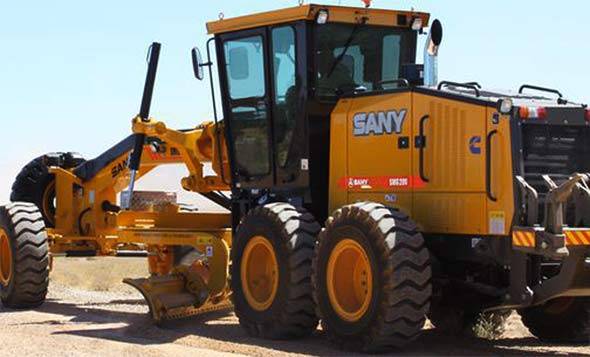

Meet the New Sany SMG200 Motor Grader

The SMG200 has direct-drive power shift transmission that delivers smooth, responsive shifting and increased efficiency. The variable power technology matches different power curves according to the working conditions which lowers fuel consumption. The optional intelligent fan cooling system monitors the system's temperature in real-time. A hydraulic motor controls the speed of the fan, resulting in low power consumption and low noise. The load sensing hydraulic system distributes flow to different mechanisms according to actual needs This system responds rapidly and precisely, resulting in superb leveling quality.

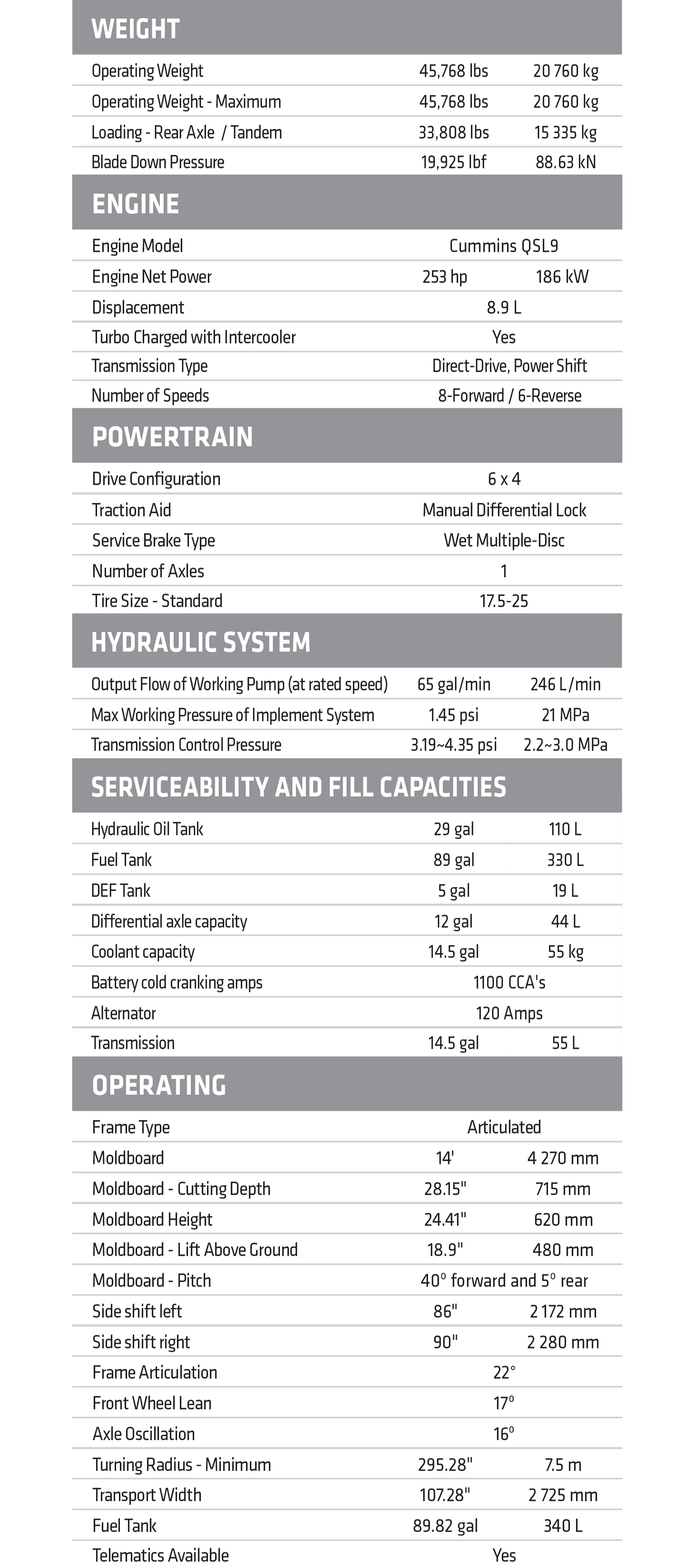

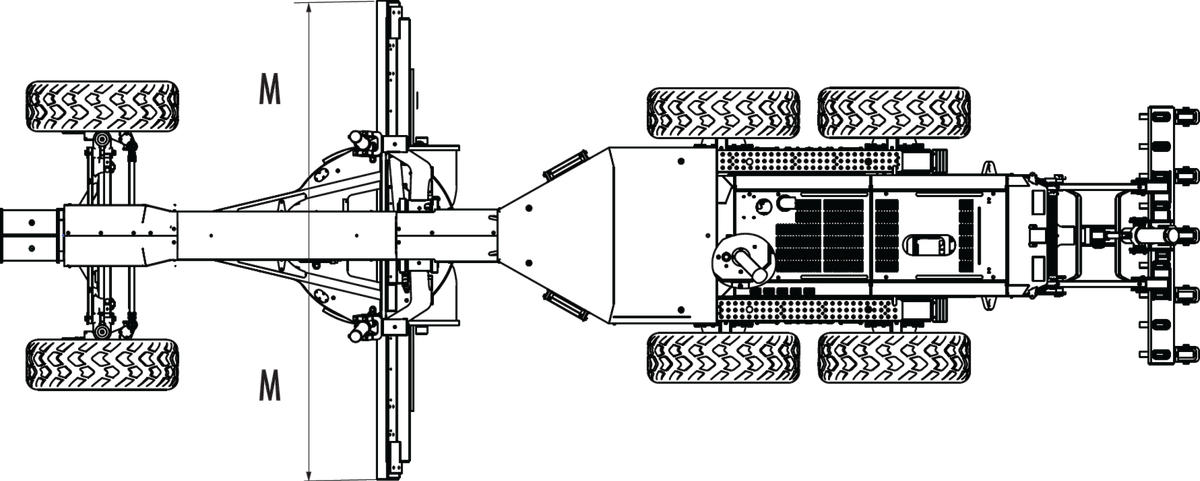

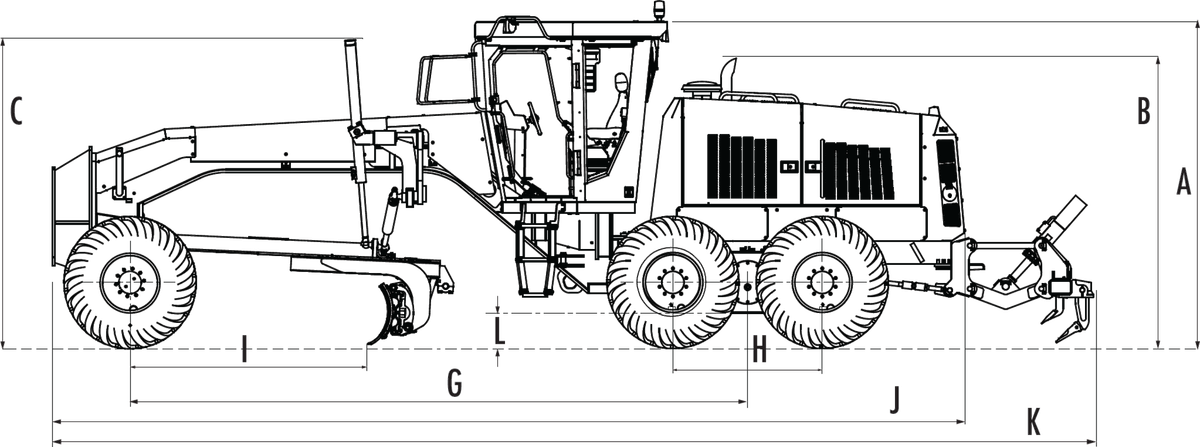

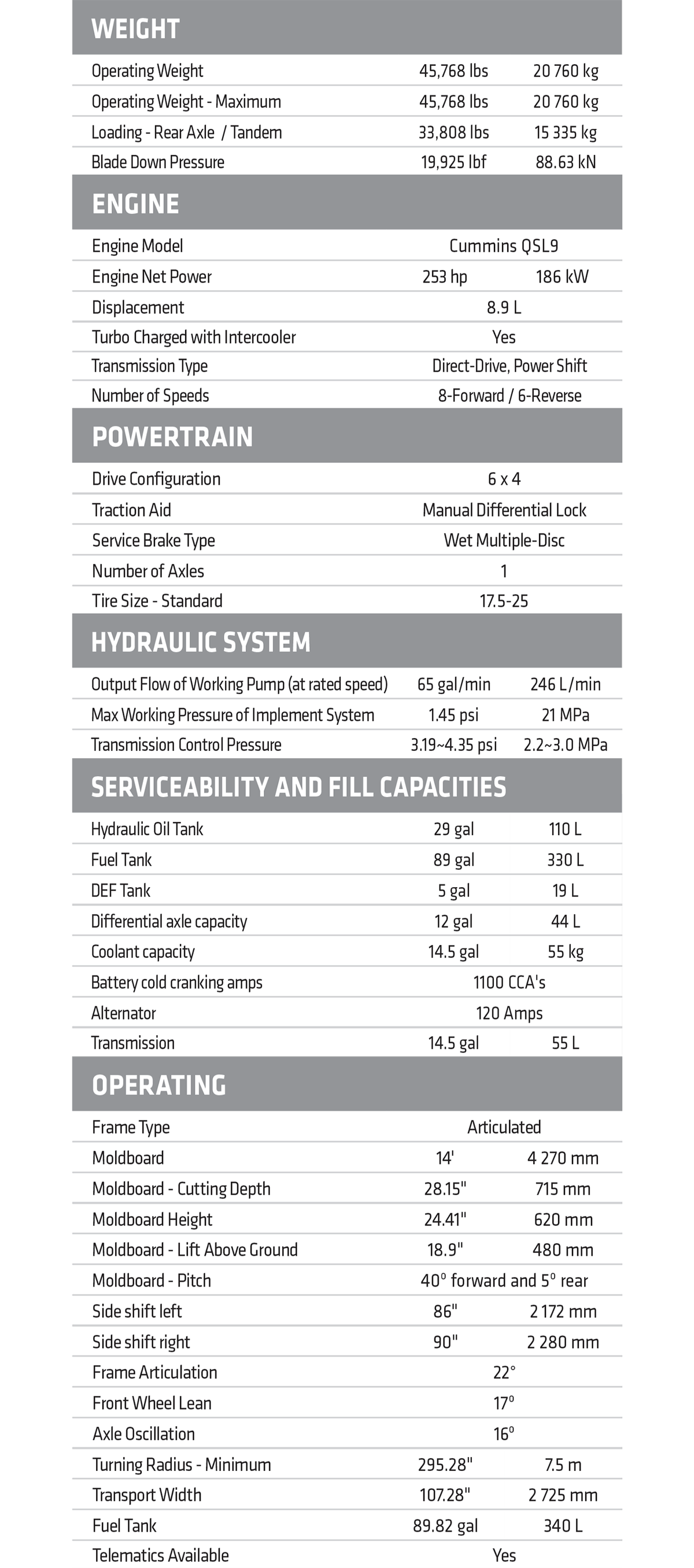

Sany SMG200 Specs



Sany SMG200 Motor Grader Features

• Engine: Cummins QSC 8.3
• Engine Power: 205 hp (153 kW) @ 1950 rpm
• Direct-drive powershift transmission delivers smooth, responsive shifting and efficiency.
• Differential system incorporates a hydraulic differential lock, allowing it to be engaged or disengaged during a turn
• CAN-BUS technology offers convenient function extension and system diagnostics

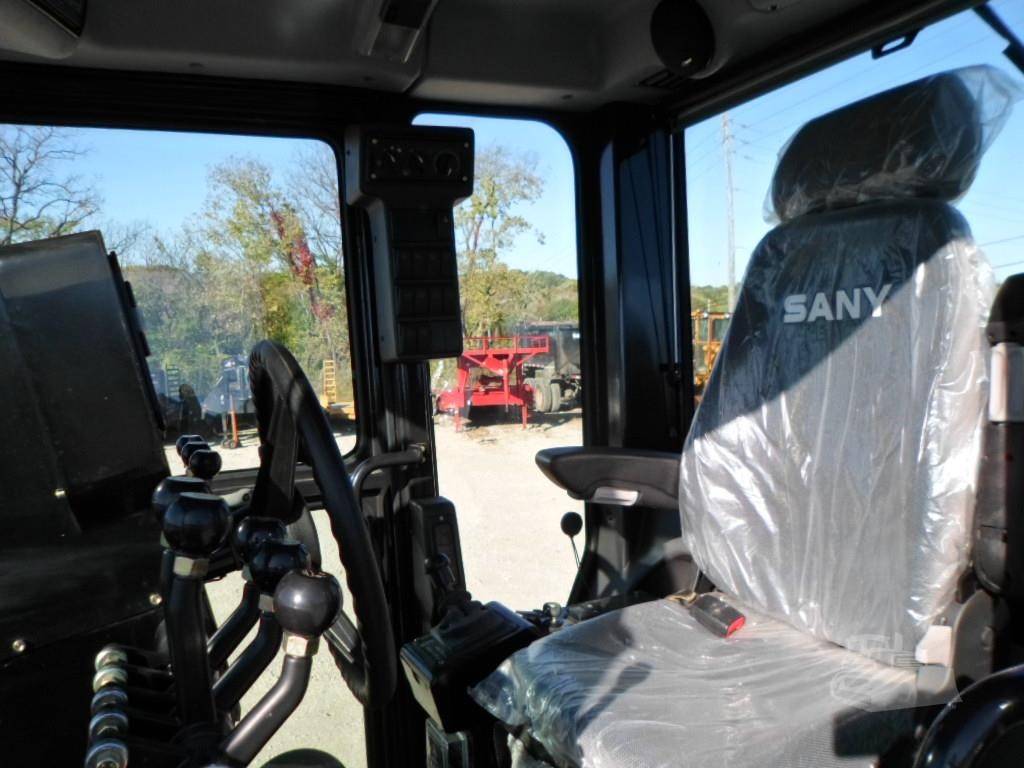

Comfortable Operator Experience

Innovative Large Cab
  • Provides the operator with a 360 degree field of vision

  • "Silent ride" engineered cab



Sany SMG200 Additional Features

Powerful Powertrain System

Direct drive power shift transmission delivers smooth, responsive shifting.
The US Cummins engine uses variable horsepower technology to match different power curves to varying load conditions.

Comfortable Operator Environment

Provides the operator with a 360 degree field of vision
"Silent ride" engineered cab.

Precision Hydraulic System

The load sensing hydraulic system provides adequate flow during multiple implement operation. The rapid, precise response to control input results in exceptional grading quality. The automatic regulation of pump flow based on load conditions results in increased fuel economy. In the optional "intelligent fan" cooling system, the fan speed is continuously variable the cooling system operating temperature.

Reliable Structure

The precision, reliable, low maintenance circle bearing reduces maintenance costs.

Convenient Maintenance

Conveniently located handrails and steps provide easy access to filters, fluids and service items. The centralized lay out of filters are easy for maintenance.

SANY SMG200 Motor Grader Parts


Here at Newman Tractor, our Parts Department is always ready to answer questions about your SANY SMG200 motor graders and deliver the parts you need, when you need them. Get your order started by calling us at 859.888.1588 today!

Looking for A Used SANY Motor Grader?

Buying or renting used makes sense for companies on a tight budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used motor grader, Newman Tractor provides the fastest and most cost-effective solution to suit your needs. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models and ages. Use the button below to view our full inventory of used motor graders.
