Sany SY35U Excavator

Finance a brand new Sany SY35U excavator today with America's best 5 year 5,000 warranty! We've got Sany SY35U excavators in stock and ready for your next rental or sale! Give us a call today!

SEE INVENTORY CALL 859.485.8500

Tier 4f/ Stage IV Certified

Net Power: 23.3 hp / 17.4 kW

Operating Weight: 8,499 lb / 3855 kg

Bucket Breakout: 6,585 lbf / 29.3 kN

Ground Pressure: 4.6 psi / 31.6 kPa

Dig Depth: 10' 2"

Meet the SANY SY35U Excavator

SY35U mini excavator is designed to help you work efficiently while maximizing your job site productivity. The 4.25-ton excavator has many features to help operators achieve the balance of power, smoothness, fuel efficiency, and speed.

Why Newman Tractor?

Newman Tractor is an authorized SANY equipment dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for financing deals or for a free on-site demo!

CALL 859-485-8500

The SANY SY35U Standard Vs. The Pro

Looking at the SY35U but not sure whether the Standard or Pro version is right for your jobsite?
Both deliver the same powerful performance and compact design, but the Pro brings added comfort, grading precision, and attachment flexibility.

BOTH MODELS INCLUDE:

Swing Boom & Zero Tail Swing – Work confidently in tight, urban, or restricted-access spaces
Pre-plumbed Auxiliary Lines – Quick hookup for a wide range of hydraulic attachments
LED Work Lights – Bright, efficient lighting for working with low visibility
Yanmar 3TNV88F Engine – Trusted, fuel-efficient Tier 4 Final power
Auto Idle – Improves fuel economy when the machine is not actively working saving you from higher fuel costs
In-Display Diagnostics – Troubleshoot quickly to reduce downtime
Boom Cylinder & Dozer Blade Guards – Added protection is standard
Pilot Controls – Smooth, intuitive feel for precision digging and movement on the jobsite
Load-Sense Hydraulics – Adjusts flow based on the demand for fuel and cooling efficiency
Heavy-Duty Steel Body – All-steel, robot-welded frame built for rugged durability even on the toughest jobs
Pattern Change Valve – Switch easily between ISO and SAE controls
Climate-Controlled Cab – All-day operator comfort in any season
5-Year / 5,000-Hour Warranty – Best-in-class protection by SANY

WHERE THE SY35U PRO EXCELS:

NEW – Angle Blade: Adds grading efficiency and versatility on jobsites
NEW – Roomier Cab: With a little more breathing room the cab offers improved operator comfort and visibility
NEW – Redesigned Counterweight: Better balance, digging stability and allows for larger cab
NEW – Diverter Valve on the Stick: Quickly switch hydraulic flow for multiple attachments

Standard Vs. Pro SY35U	Pro	Standard
Float Blade	✔️	✔️
Angle Blade	✔️	✖️
Larger Cab	✔️	✖️
Diverter Valve	✔️	✔️

Sany SY35U Tech Specs

Weight

Operating Weight (metric tons):

3.85

Operating Weight (lbs):

8,499

Dimensions

Transport Length (ft/in):

16' 2"

Transport Width (ft/in):

5' 8"

Transport Height (ft/in):

8' 3"

Tail Swing Radius (ft/in):

2' 10"

Tail Swing Type:

Zero Tail Swing

Performance

Stick Length (ft/in):

4' 7"

Boom Length (ft/in):

8' 4"

Max Dig Depth (ft/in):

10' 2"

Max Depth of Vertical Wall (ft/in):

8' 10"

Reach at Ground Level (ft/in):

17' 11"

Dump Height (ft/in):

11' 4"

Boom Swing, right/left (deg):

51° / 64°

Bucket Breakout Force (lbf):

6,585

Engine

Engine Make:

Yanmar

Engine Model:

3TNV88

Engine Net HP:

23.3

Hydraulics

Pump Flow, Implement & Swing (gpm):

23.2

Max Relief Valve Pressure (psi):

3,553

Specifications, dimensions, weights, capacities, standard equipment, options, and availability are subject to change without notice. Images may show optional equipment or attachments not included as standard. Please contact us to confirm the latest product specifications, available configurations and pricing.

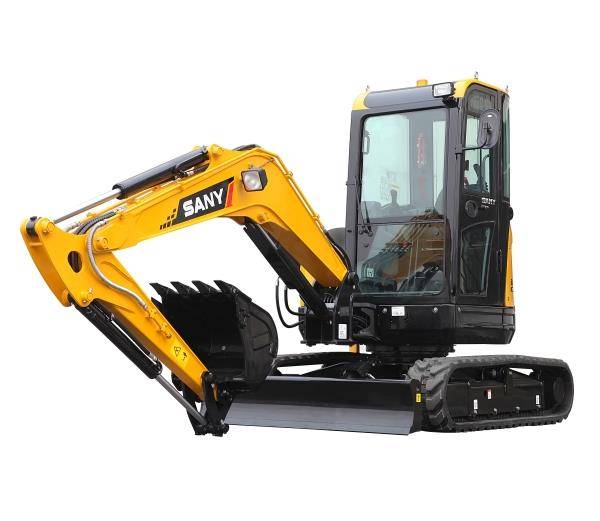

Sany Excavators For Sale

Gen 1 Spec Sheet

Gen 2 Spec Sheet

Sany SY35U Machine Features

• Engine: Yanmar 3TNV88-BDSA, Tier 4f.

• Zero tail swing is ideal for tight job sites and working in confined spaces.

• Lines are run down the boom and arm as standard equipment for east fit-up and running of hydraulic attachments.

• Enclosed cab with air conditioning standard for operator comfort.

• Load sensing hydraulics for increased fuel efficiency and maximized performance.

• Two-speed travel.

High Performance Engine

Both the SY35U Standard and Pro are powered by a 24.4 HP Yanmar 3TNV88 engine, built to handle the toughest jobs with unmatched efficiency and reliability.

Yanmar-Customized for SANY: Delivers strong torque and proven durability in demanding conditions.
Step-less Accelerator Control: Adjusts engine speed seamlessly for smoother operation and optimal fuel efficiency.
Fuel-Efficient Performance: Low fuel consumption without sacrificing breakout force or cycle times.
Clean & Quiet Operation: Compliant with Tier 4 Final emissions standards — ideal for residential or noise-sensitive jobsites.

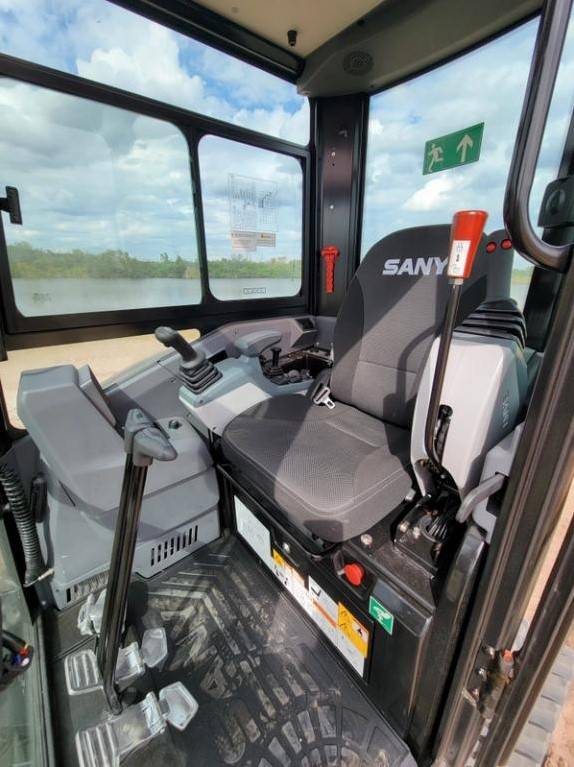

Operator Comfort

The Sany SY35U excavator cabin adopts the latest noise reduction technology that meets the highest European standards, creating a more comfortable operating environment. These excavators also come in an open cab configuration.

Air conditioner & heater with 3D airflow come standard in closed cab model for maximum comfort.

Well-equipped cabin with radio, cigarette lighter, ashtray, cup holder, file pocket, cab light, garment hook, etc.

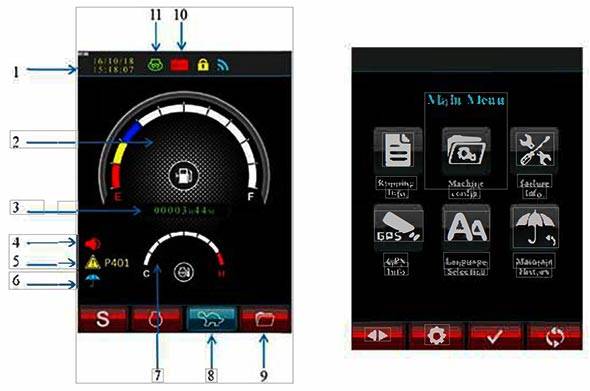

Digital Panel

The digital panel is used to display information and change system parameters. It consists of two main pages: default page and main menu. On the default page, key information, such as operating hours, coolant temperature, fuel level and warnings are clearly demonstrated. And the main menu displays the main signals to/from the controller, such as running information in real time, machine configuration, malfunction and GPS information, maintenance record and language selection.

(1) Clock

(2) Fuel level

(3) Hour meter

(4) Fault alarm

(5) Fault code

(6) Maintenance signal

(7) Coolant temperature

(8) Speed switch (full/idling)

(9) Enter main menu

(10) Battery charging

(11) Engine preheating

See our inventory of sany excavators

Additional Features

Powerful engine

The Sany SY35U mini excavator is equipped with the EPA Tier 4i 23.3 hp / 17.4 kW Yanmar engine to better support the power and performance required for various applications. Also, the stepless speed change accelerator configured for the machine realizes free speed rotation in different working environments, ideal for the combination of operation and efficiency.

Load Sensing Hydraulics

The matched load sensing hydraulics is designed for increased fuel efficiency and maximized performance.

X-Shape Undercarriage

The X-shape undercarriage features strong intensity and rigidity, showing excellent bending and torsion resistance capacity, to meet different job sites.

Energy-Saving Technology

The self-developed boom and deflection head structure.

The topological optimization enhances the strength and reduces the weight, which guarantees fuel efficiency.

User-Friendly Operation

The zero tail swing is perfect for tight job sites and working in confined spaces. The open cab is designed to increase visibility, easy for the operator to observe the road conditions. The Europe-introduced latest noise-reduction technology creates a more focused operation environment; the optional multipoint air-conditioner offers you more choices.

Auxiliary Lines

The auxiliary lines are run down the boom and arm as standard equipment for easy fit-up and running of hydraulic attachments.

Easy Maintenance

The tail end of the machine is mainly designed for daily maintenance, to make it easily accessible to the air filter and fuel oil filter, facilitating the maintaining job.

Sany SY35U Excavator Parts

Here at Newman Tractor, our Parts Department is always ready to answer questions about your Sany SY35U excavator and deliver the parts you need, when you need them. Get your order started by calling us at 859.888.1588

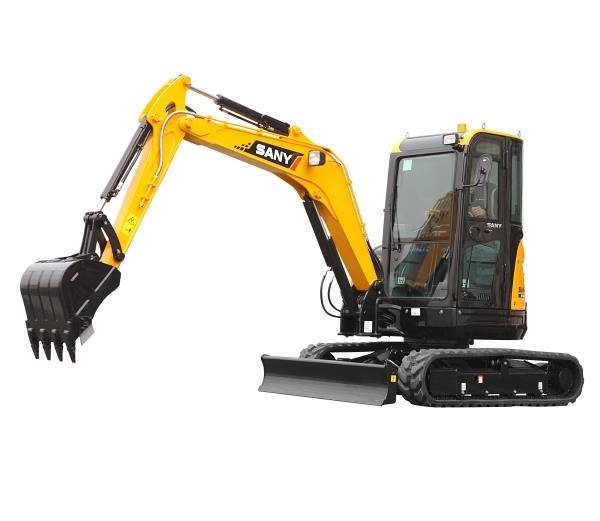

Looking for A Used Sany SY35U Excavator?

Buying or renting used makes sense for companies on a tight budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used excavator, Newman Tractor provides the fastest and most cost-effective solution to suit your needs. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models and ages. Use the button below to view our full inventory of used excavators.
