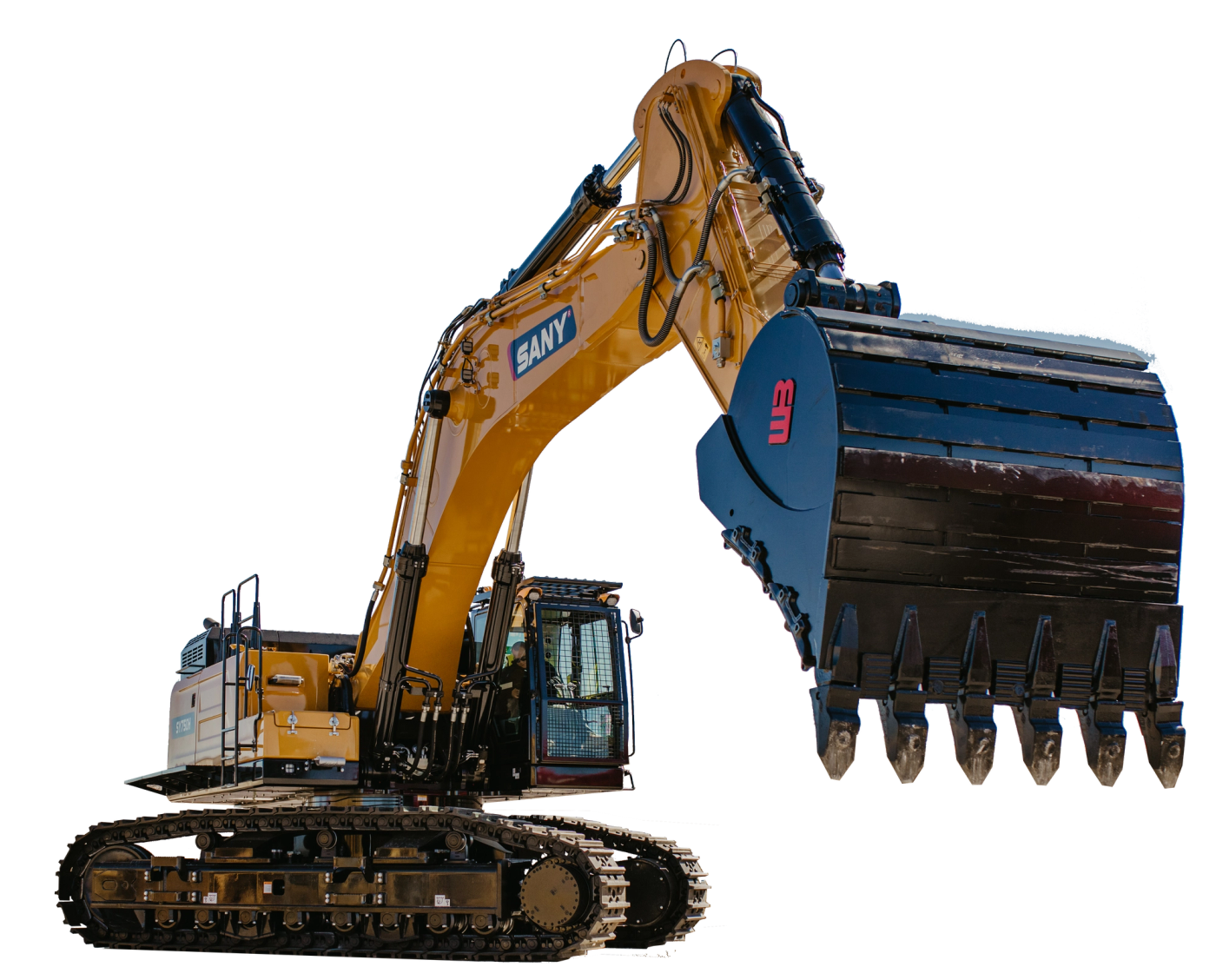

Sany SY750H Excavator

Secure your brand new SANY SY750H excavator with America's best 5-year 5,000 warranty! The all-new SANY SY750H excavators coming to your job site soon! Give us a call to grab yours!

CALL 859.485.8500

sany-sy750h-excavator-for-sale-or-rent

Tier 4f/ Stage V Certified

Rated Power: 524 hp / 391 kW

Operating Weight: 173,063lb / 78,500 kg

Bucket Breakout: 92,172 lbs / 410 kN

Ground Pressure: 14.6 psi / 101 kPa

Dig Depth: 24' 10"

Sany Logo

The all-new SANY SY750H!

Meet the All-New Sany SY750H Excavator

The SANY SY750H is the new chief when it comes to size in the SANY excavator lineup. Arriving with a formidable 524 horsepower from its 14.9L X15 Cummins engine, this machine packs a powerful punch. With the SANY SY750 excavator on your job site, you can expect both power and comfort to be in abundance. The operator comforts included as standard are truly unbeatable, with features such as a keyless start, a heated air-ride seat, and Bluetooth 10.4" monitor just to name a few. But let's not just scratch the surface - let's dive deep into the SY750! With an extensive dig depth of 24' 10" and over 92k lbf breakout force, this machine is capable of tackling even the toughest excavation jobs with ease.

SANY SY750H TECH SPECS

Newman Tractor Image
Newman Tractor Image
Newman Tractor Image
WEIGHT

Operating Weight (metric tons):

78.5

Operating Weight (lbs):

173,063

DIMENSIONS

Transport Length (ft/in):

42' 3"

Transport Width (ft/in):

12' 0"
Transport Height (ft/in):

16' 4"

Tail Swing Radius (ft/in):

13' 8"

Tail Swing Type:
Long Undercarriage

PERFORMANCE

Stick Length (ft/in)):
9' 10"

Boom Length (ft/in):

23' 0"

Max Dig Depth (ft/in):

24' 10"

Max Depth of Vertical Wall (ft/in):

16' 0"

Reach at Ground Level (ft/in):

39' 8"

Dump Height (ft/in):

23' 6"

Bucket Digging Force (lbf):

92,172

Engine make:

Cummins

Engine model:

X15 Stage V / Tier4F

Gross Engine HP:

524

HYDRAULIC

Pump Flow, implement & swing (gpm):

266.3

Max relief valve pressure (psi):

4,975

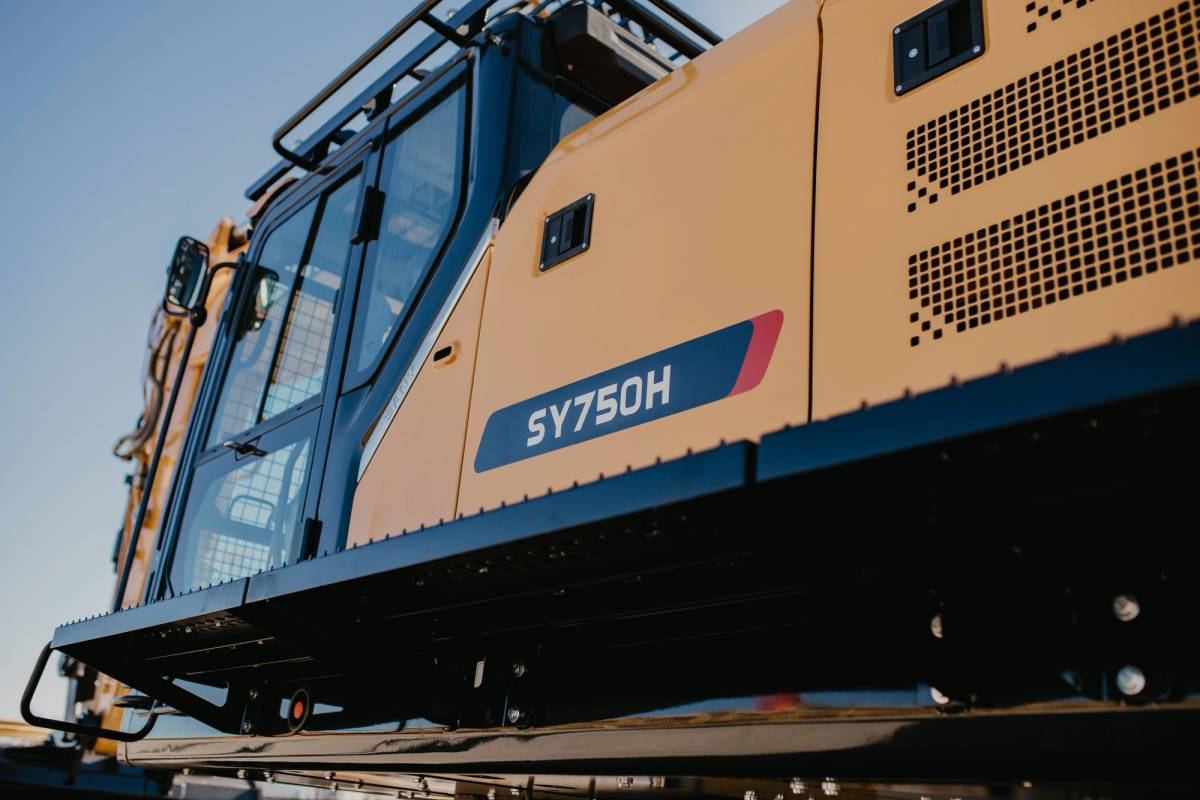

New Sany SY750H on display

Sany SY750H Machine Features

• Engine: Cummins 14.9L X15

• SANY cab has excellent space, wide visibility, and easy access to controls to maximize operator comfort.

• Enhanced engine/hydraulic management system marries excellent control and high productivity with fuel-efficient performance.

• Standard features include two-way thumb-controlled auxiliary hydraulics, a pattern-control change valve, and a rearview camera.

• Focus on reliability and serviceability ensures convenient access and increased uptime.

HIGH EFFICIENCY AND LOW CONSUMPTION ENGINE

High Economy

With a dual-pump, dual-circuit constant power control system, the engine can fully develop its power. The perfect combination of this two realizes the heavy-duty mode with a large workload, the standard mode with auto-adjusted engine speed and light-duty mode, high efficiency and low fuel consumption while optimizing the combustion.

Auto Deceleration System

The function of auto deceleration or acceleration reduces fuel consumption by 5-10%. When an operation has been stopped for 3 seconds, the engine speed drops automatically to idle level and maintains the idling state. When the operation is resumed by maneuvering the control levers, the engine speed will increase to the set rpm within 0.1 seconds. The working capability is resumed instantly.

Newman Tractor Image

Sany SY750H Additional Features

Engine Customized for SANY

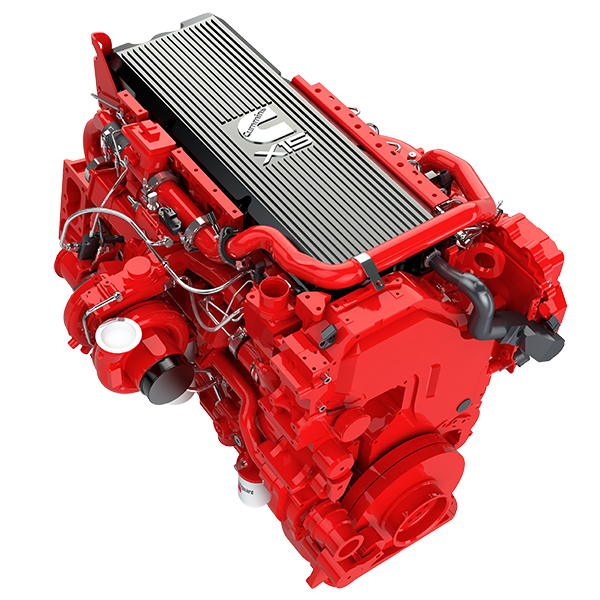

The Cummins 14.9L X15 engine is a workhorse of an engine delivering performance through it's 524 net horsepower and a torque rating of up to 2,050 lb-ft, this engine is designed to tackle even the toughest jobs! It features advanced fuel systems, including high-pressure common-rail fuel injection and VGT turbocharging, which work together to optimize fuel efficiency and power.

Powerful Travel Ability

The 750 has an axial piston motor with a parking brake, making the travel motor driving force increased to 546.8KN. With two travel speed settings, quick selection in the cab, and 35-degree capabilities this machine moves!

Working Mode Selection

For added flexibility, operators can choose from three digital power selection options tailored to their specific application needs. The Low, Standard and High power selections are carefully designed to optimize efficiency and fuel consumption in appropriate scenarios, giving operators a range of choices to best suit their working conditions.

Comfortable Operation

The roomy and enclosed cab not only offers a quieter working environment for operators, but it also maintains higher air pressure inside than outside to prevent dust from entering the space. To further enhance operator comfort, the cab is equipped with an innovative silicone rubber shock absorber that effectively reduces vibrations caused by rough terrain and hydraulic impact. This advanced feature significantly improves the stability of the cab, providing a smoother ride for the operator. Overall, these features work together to create a more comfortable and productive working environment for operators in even the toughest conditions.

Safety Features

Operators' safety is of utmost importance, and this is reflected in the construction of the machine. Designed for safety with simple entry and exit with features like handrails, toughened glass doors, windows, and transparent overhead hatches to withstand harsh working conditions. Equipped with seat belts, operators can work with peace of mind knowing they are secure inside the cab. For even greater protection, optional screens are available for the front, side, and rear of the cab. These features work together to ensure that operators are safe and protected while operating the machinery.

Much More Extensive View

Equipped with rearview and blindside cameras along with 7 high-power LED lights ensure the operator has no shortage of sight, day or night.

Easier Monitoring & Maintenance

Equipped with system monitoring and alarms integrated into the 10.4" diagnostic LCD monitor provide superior machine awareness. The inclusion of auxiliary flow and pressure change along with a 1-2 way switch directly from the display further enhances the machine's performance capabilities. To ensure that your investment stays in peak condition for the long haul, attachment safety features, and usage warnings are also standard. These features work together to provide operators with the information they need to operate the machinery safely and efficiently while protecting your investment.

Newman Tractor Image

Looking for rental opportunities?

The SY385C will be available for order by the end of 2023!

Request Information

Sany SY750H Excavator Parts

Sany SY215C parts for sale

Here at Newman Tractor, our Parts Department is always ready to answer questions about your Sany SY750H excavator and deliver the parts you need, when you need them. Get your order started by calling us at 859.888.1588

CONEXPO LAUNCHES THE ALL-NEW SY750H!

Brand new to the American Market, we are proud to announce that SANY America's largest machine to date is coming soon! The SY750H excavator has the power to withstand the demand of your biggest, toughest jobsites and the torque to match!
