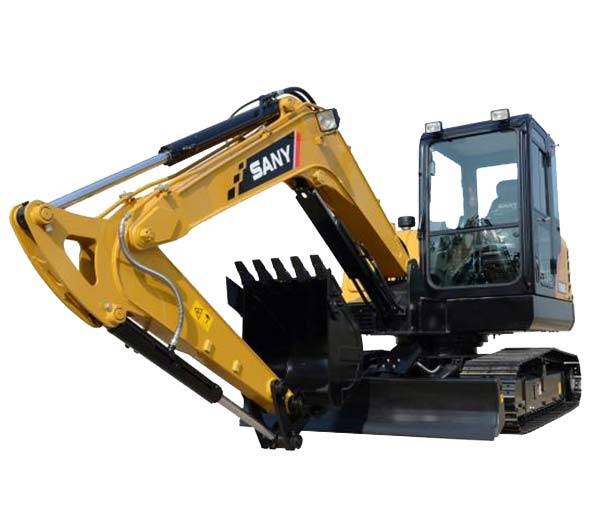

Sany SY60C Excavator

Finance a brand new Sany SY60C excavator today with 0% interest and America's best 5 year 5,000 warranty! We've got Sany SY60C excavators in stock and ready for your next rental or sale! Give us a call today!


Tier 4/ Stage 4 Certified

Rated Power: 60 hp / 45 KW/2200 RPM

Operating weight: 13,448 lbs

Bucket Digging Force: 10,117 lb / 45 kN

Ground Pressure: 3275 kPa

Sany SY60C Excavators For Sale

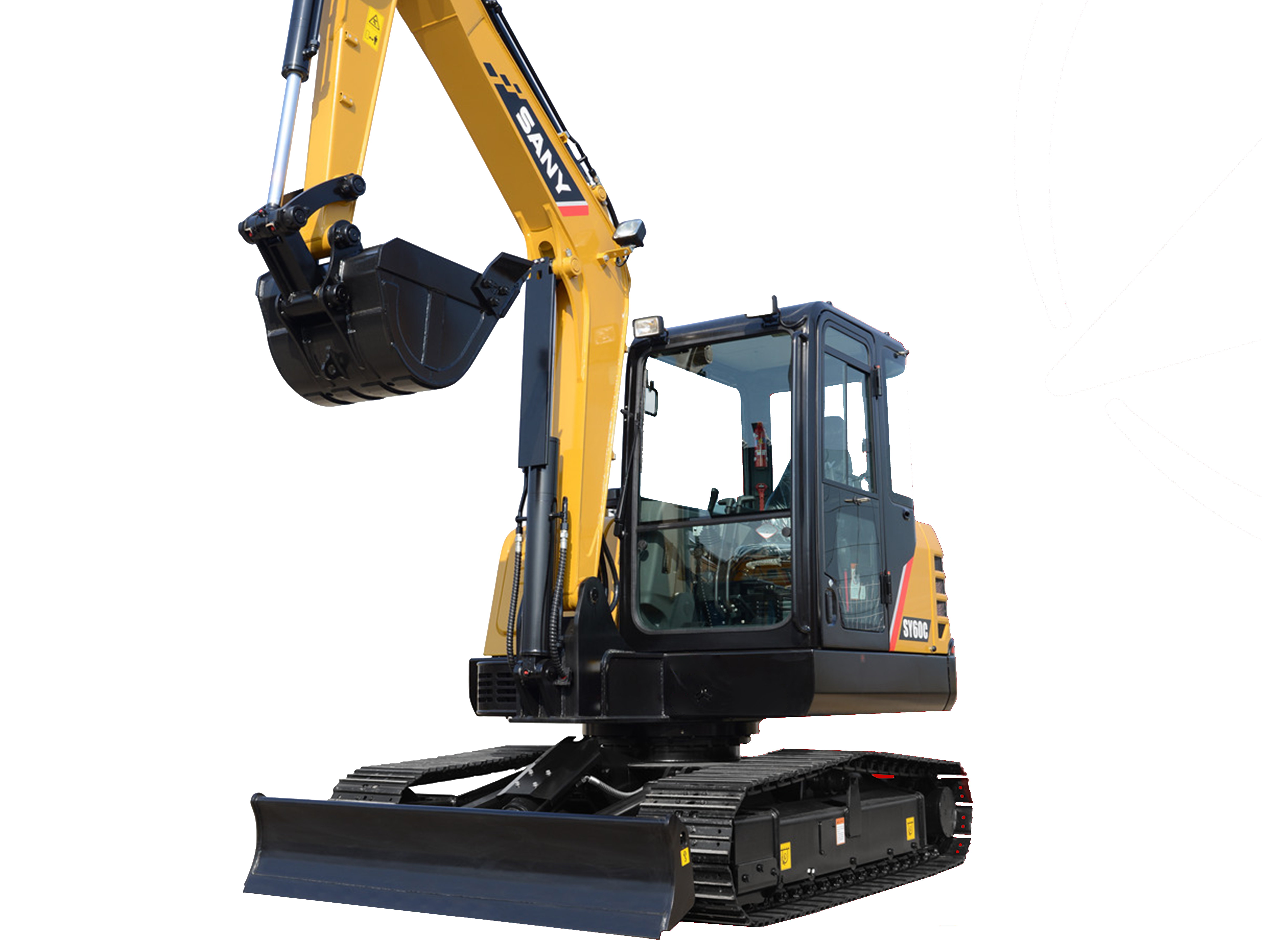

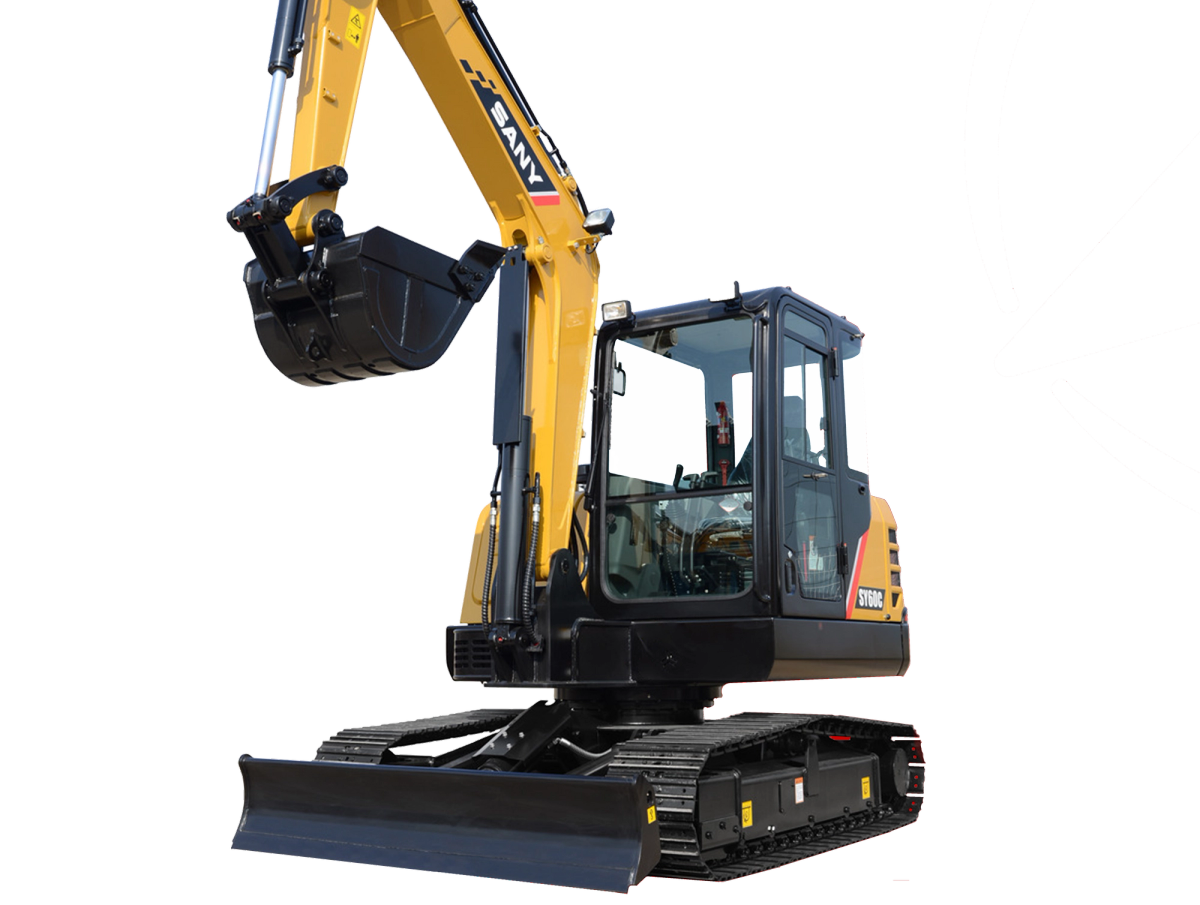

The All-New Sany SY60C Excavator

The Sany SY60C excavator has been designed and engineered to do heavy work in tight places! The excavator's pivoting boom and zero tail swing allow the Sany SY60C to work well near walls or other barriers with more lift power than smaller machines in the Sany line. This mini excavator helps you work efficiently while maximizing your job site productivity. This Sany 13,448 lb. mini excavator has many features to help operators achieve the balance of power, portability, fuel efficiency, and speed. The SY60C also comes standard with structural reinforcements to help keep operators safe.

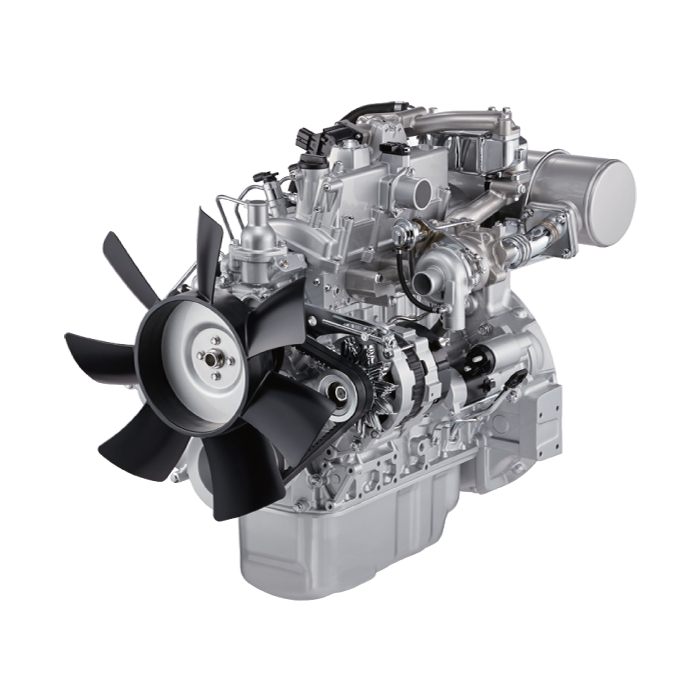

The 13,448 lb. Sany SY60C adopts a Kubota, V2607 engine, with 60 hp capabilities. The excavator's engine delivers new levels of efficiency and productivity to help you get the most out of your investment.

Newman Tractor has Sany SY60C excavators in stock and ready for sale or rental. With over 40 years of experience in the heavy equipment sales and rental industry, we can do financing deals or free on-site demos! 859-485-8500

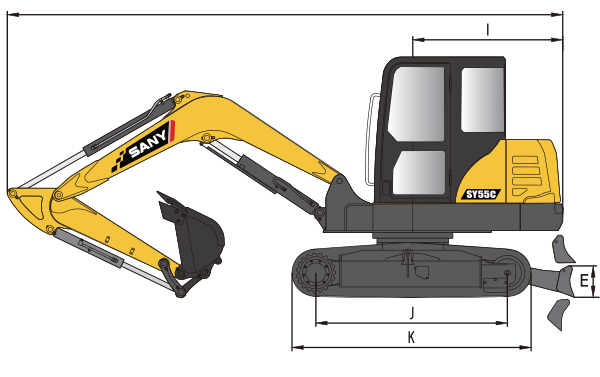

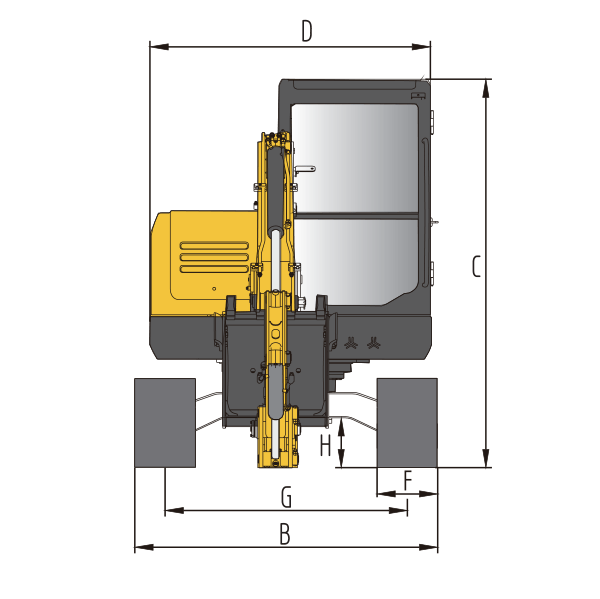

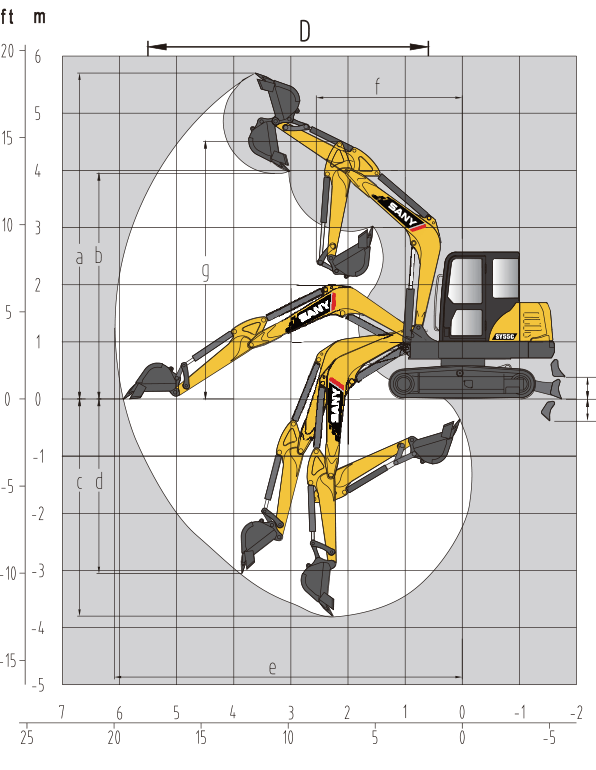

Sany SY60C Tech Specs

Sany SY60C specs sheet details


Operating weight (metric tons):


Operating weight (lbs):



Bucket capacity, SAE heaped min-max (cu ft):

3.5 - 9.9


Total flow of main pumps, implement & swing (gpm):


Max relief valve pressure (psi):



Arm (stick) length used for dimensions & forces (ft/in):

5' 7"

Max dig depth (ft/in):

13' 0"

Max depth of vertical wall (ft/in):

10' 5"

Reach @ ground level (ft/in):

20' 7"

Dump height (ft/in):

13' 4"

Boom swing, right/left (deg):

40° / 75°

Bucket digging force (lbs):



Engine make:

Yanmar T4f

Engine model:


Gross hp:



Transport length (ft/in):

19' 9"

Transport height (ft/in):

9' 3"

Transport width (ft/in):

6' 7"

Tail overhang over side (in):


Sany SY60C Machine Features

• The Engine on a Sany SY60C is a Kubota V2607 with a Tier 4 certification.

• SANY SY60C excavators have excellent cab space, wide visibility and easy access to controls to maximize operator comfort.

• The Sany SY60C compact excavator uses an enhanced engine/hydraulic management system. This offers excellent control and high productivity without compromising fuel-efficient performance.

• Standard features on the Sany SY60C mini excavator include auxiliary hydraulics and a pattern-control change valve.

•Sany Focuses on reliability and serviceability to ensure convenient access and increased up-time on your job site.

Operator Comfort

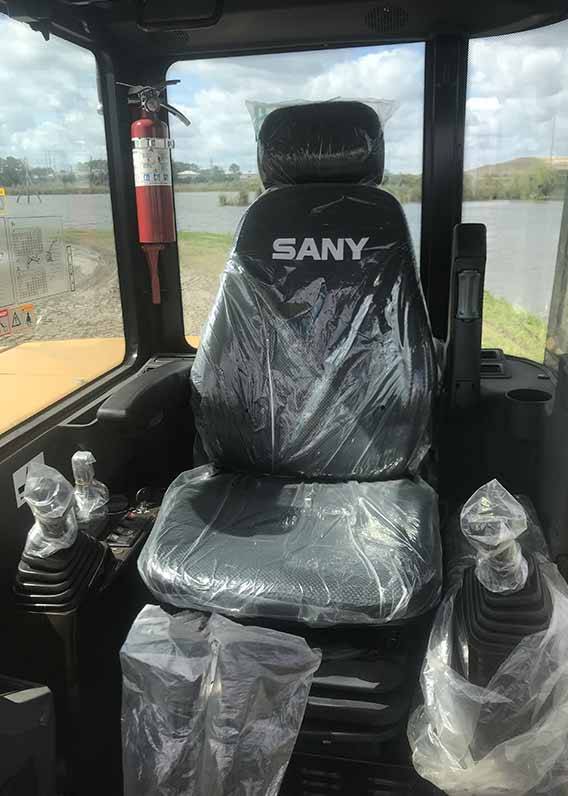

Innovative Large Cab

The Sany SY60C Excavator boasts a large cab equipped with an adjustable suspension seat. The seat can be adjusted as desired. The rigidity of the seat can also be adjusted according to the operator's weight.

Controls & Levers

The control levers and joysticks on this compact excavator are designed and arranged according to ergonomics. In other words, the excavator can be operated quite easily! Each operation button is easily within the reach of the operator.

Silicone Rubber Shock Absorber

A rubber shock absorber is fixed to the swing platform in six points, which has minimized the shock brought by rough road and engine or hydraulic impact. This considerably increases the cab stability of the SY60C, while improving operator comfort.

Luxurious Mechanical Damping Seat

The suspension rigidity can be adjusted according to the drivers' weight, effectively absorbing the vibration came from the cab floor to improve comfort and reduce fatigue.

Pressure Sealed Cab

The sealed design ensures that the air pressure inside the cab is higher than outside, thus preventing the dust invasion.

Zero Turn Swing Radius

Zero Turn & Independent Boom

With a zero tail swing radius and independent boom swing, the Sany SY60C allows for operation in extremely confined spaces. This mini excavator can go places that were previously inaccessible!

High-Performance Engine

High Economy

The Sany SY60C boasts a tier 4 Kubota final power plant. The engine on the Sy60C also uses an advanced SLSS hydraulic system. This excavator engine puts out optimal power control and work mode selection to improve speed and power during operation. All of these features on the Sany SY60C reduce fuel consumption during operation.

The Sany SY60C has easily accessible service points and a detachable radiator screen. These features make scheduled maintenance on this mini excavator super easy and convenient.

Sany SY60C Additional Features

Engine Customized for SANY

With a dual-pump, dual-circuit constant power control system, the Sany SY60C, Kubota engine can fully develop its power. This excavator has the perfect combination of high efficiency and low fuel consumption under different working modes.

Comfortable Operation

The spacious and sealed cab is not only creating a quiet environment for the operator but ensures the air pressure inside is higher than the outside, preventing the dust invasion. The innovative silicone rubber shock absorber, equipped in the operator station, minimizes the shock brought by the rough road condition or hydraulic impact, considerably increasing the stability of the cab and improving the comfort of the operator.

Multiple air outlets at different levels and locations give the operators more comfort, especially in a stuffy environment.

Falling Object Protection Structure

The cab is punch-formed with a thick high-strength steel sheet, and the toughened glass-made door and window, together with the equipped seat belt, creating a quite safe environment for the operators.

Much More Extensive View

The improved cab design elements the previous narrowed blind zone, by reducing the column size and decreasing the structural strength of the cab.

Sany SY60C Excavator Parts

Here at Newman Tractor, our Parts Department is always ready to answer questions about your Sany SY60C excavator! We can deliver the parts you need for your Sany excavator when you need them. Get your SY60C parts order started by calling us at 859.888.1588

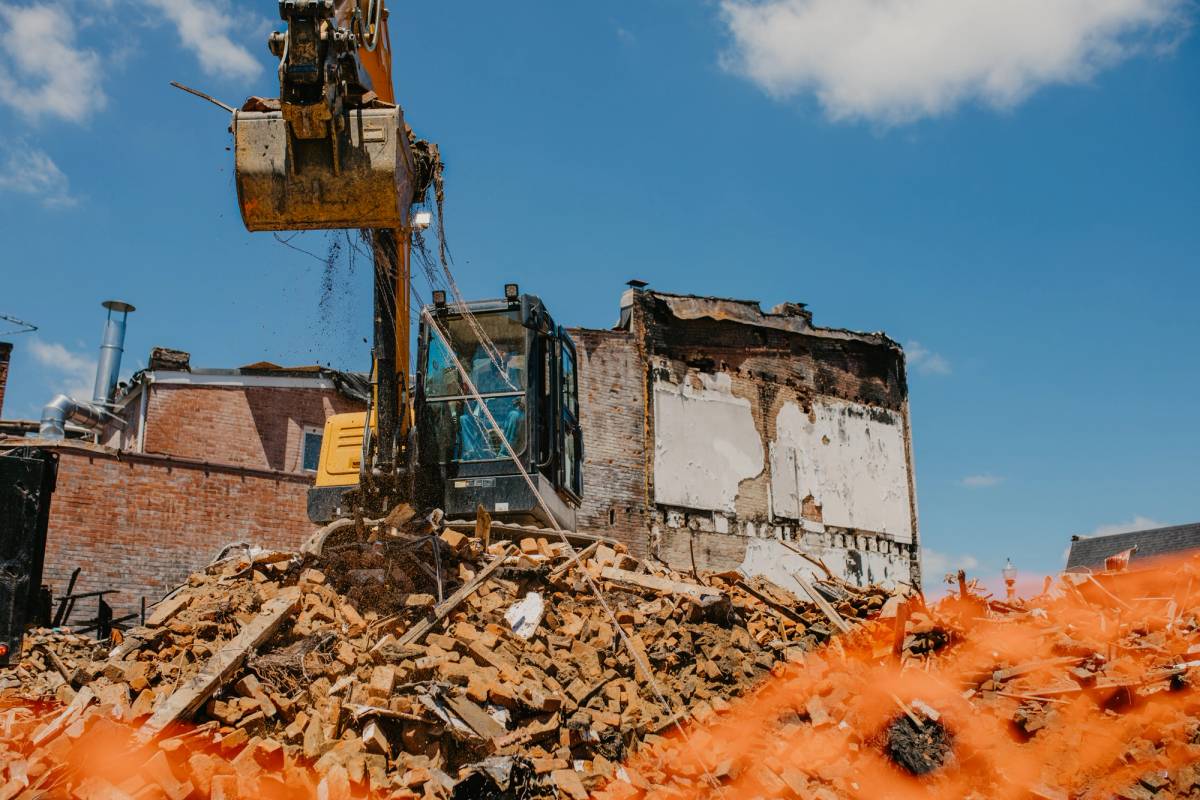

Looking for A Used Sany SY60C Excavator?

Buying or renting a used Sany SY60C makes sense for companies on a tighter budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used compact excavator, Newman Tractor provides the fastest and most cost-effective solution. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models, and ages. Use the button below to view our full inventory of used mini excavators!
