Sany SY225C Excavator

Finance a brand new Sany SY225C excavator today with America's best 5 year 5,000 warranty! We've got Sany SY225C excavators in stock and ready for your next rental or sale! Give us a call today!

SEE INVENTORY CALL 859.485.8500

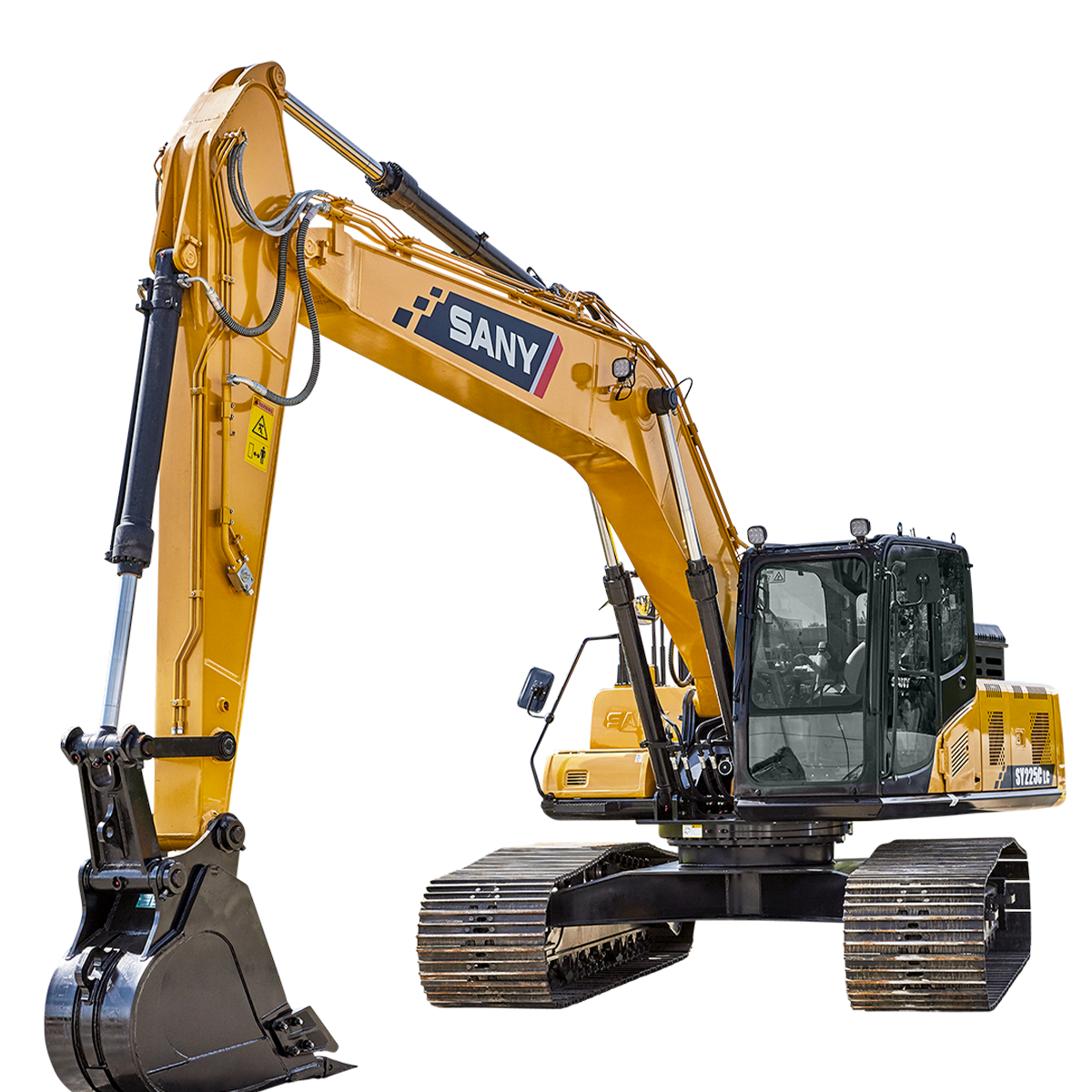

sany-sy225c-excavator-for-sale-or-rent

Tier 4f/ Stage IV Certified

Gross Power: 163.6 hp / 122 kW

Operating Weight: 54,013 lb / 24,500 kg

Bucket Breakout: 28,551 lbf / 127 kN

Ground Pressure: 5.2 psi / 36.1 kPa

Dig Depth: 21' 10"

Sany Logo

Sany SY225C Excavators For Sale

The All-New Sany SY225C Excavator

The SANY SY225C is the latest addition to the company's family of compact excavators. Marrying the best of two worlds from the elongated undercarriage of the SY265C and the powerful upper structure of the SY215C, SANY pulled all the stops to make this machine a nimble and powerful overachiever.

Ready to take on any job you can throw at it the SY225C weighs in at 54,013 lbs with modern load-sensing hydraulics powered by a Cummins QSB6.7 163.6 hp diesel engine. This machine will work with precision, accuracy and maximum efficiency no matter the task or environment. Plus, you can rest easy knowing that your investment in the SY225C is sure to pay off. So if you're looking for an excavator that will make work easier and faster than ever before, the SY225C is your best bet!

Newman Tractor has Sany SY225C excavators in stock and ready for sale or rental. With over 40 years of experience in the heavy equipment sales and rental industry, we can do financing deals or free on-site demos! 859-485-8500

Sany SY75C on show

THE SANY SY225C WALKAROUND VIDEO

SANY SY225C Tech Specs

225c-excavator-spec-map
WEIGHT

Operating Weight (metric tons):

24.5

Operating Weight (lbs):

54,013

DIMENSIONS

Transport Length (ft/in):

31' 11"

Transport Width (ft/in):

11' 1"
Transport Height (ft/in):

11' 1"

Tail Swing Radius (ft/in):

9' 6"

Tail Swing Type:
Long Undercarriage

PERFORMANCE

Stick Length (ft/in)):
9' 7"

Boom Length (ft/in):

18' 8"

Max Dig Depth (ft/in):

21' 10"

Max Depth of Vertical Wall (ft/in):

19' 7"

Reach at Ground Level (ft/in):

33' 10"

Dump Height (ft/in):

21' 11"

Bucket Digging Force (lbf):

28,551

Engine

Engine make:

Cummins

Engine model:

QSB 6.7T4F

Gross Engine HP:

163.6

HYDRAULIC

Pump Flow, implement & swing (gpm):

117.3

Max relief valve pressure (psi):

4,975

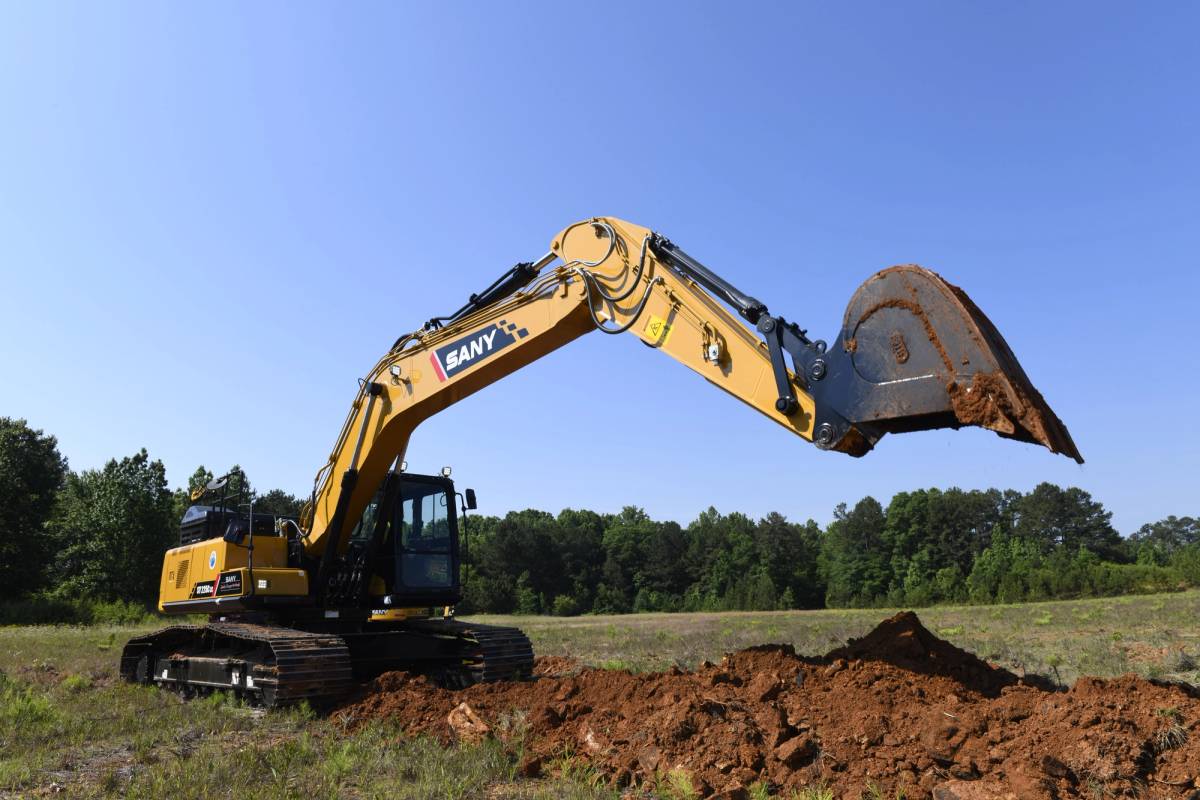

SANY SY225 in action digging in dirt

Sany SY225C Features

• The Engine on a Sany SY225C is a Cummins QSB6.7 with a Tier 4 certification.

• Sany SY225C excavators have excellent cab space, wide visibility, and easy access to controls to maximize operator comfort.

• The Sany SY225C medium excavator uses an enhanced engine/hydraulic management system. This offers excellent control and high productivity without compromising fuel-efficient performance.

• Standard features on the Sany SY225C compact excavator include auxiliary hydraulics, pattern-control change valve, air conditioning, and heat.

•Sany Focuses on reliability and serviceability to ensure convenient access and increased up-time on your job site.

A Highly Efficient Engine with Low Fuel Consumption

High Economy

The Sany SY225C boasts a tier 4 Cummins engine. This excavator engine puts out optimal power control and work mode selection to improve speed and power during operation. All of these features on the Sany SY225C reduce fuel consumption during operation.

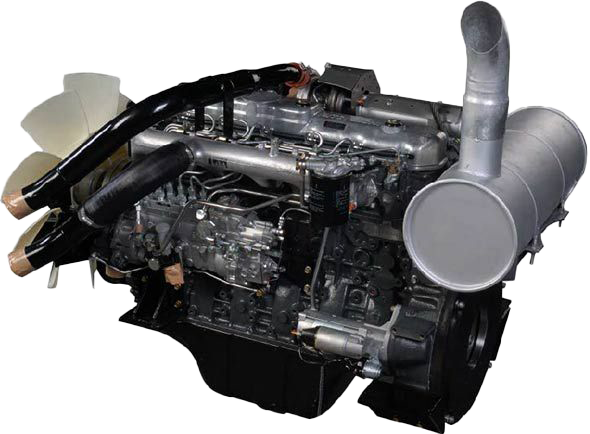

Sany SY225CLC Engine
inside of SANY cab

Operator Comfort

Innovative Large Cab

The Sany SY225C Excavator boasts a large cab equipped with an adjustable suspension seat. The seat can be adjusted as desired. The rigidity of the seat can also be adjusted according to the operator's weight.

Controls & Levers

The control levers and joysticks on this compact excavator are designed and arranged according to ergonomics. In other words, the excavator can be operated quite easily! Each operation button is easily within the reach of the operator.

Silicone Rubber Shock Absorber

A rubber shock absorber is fixed to the swing platform in six points, which has minimized the shock brought by rough road and engine or hydraulic impact. This considerably increases the cab stability of the SY225C, while improving operator comfort.

Luxurious Mechanical Damping Seat

The suspension rigidity can be adjusted according to the drivers' weight, effectively absorbing the vibration came from the cab floor to improve comfort and reduce fatigue.

Pressure Sealed Cab

The sealed design ensures that the air pressure inside the cab is higher than outside, thus preventing the dust invasion.

Sany SY225C Additional Features

Engine Customized for SANY

With a dual-pump, dual-circuit constant power control system, the Sany SY225C, Cummins engine can fully develop its power. This excavator has the perfect combination of high efficiency and low fuel consumption under different working modes.

Comfortable Operation

The spacious and sealed cab is not only creating a quiet environment for the operator but ensures the air pressure inside is higher than the outside, preventing the dust invasion. The innovative silicone rubber shock absorber, equipped in the operator station, minimizes the shock brought by the rough road condition or hydraulic impact, considerably increasing the stability of the cab and improving the comfort of the operator.

Multiple air outlets at different levels and locations give the operators more comfort, especially in a stuffy environment.

Falling Object Protection Structure

The cab is punch-formed with a thick high-strength steel sheet, and the toughened glass-made door and window, together with the equipped seat belt, create a quite safe environment for the operators.

Much More Extensive View

The improved cab design elements the previous narrowed blind zone, by reducing the column size and decreasing the structural strength of the cab.

Sany SY225C Excavator Parts

Sany SY95C parts for sale

Here at Newman Tractor, our Parts Department is always ready to answer questions about your Sany SY225C excavator! We can deliver the parts you need for your Sany excavator when you need them. Get your SY225C parts order started by calling us at 859.888.1588

Looking for A Used Sany SY225C Excavator?

Buying or renting a used Sany SY225C makes sense for companies on a tighter budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used compact excavator, Newman Tractor provides the fastest and most cost-effective solution. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models, and ages. Use the button below to view our full inventory of used mini excavators!
