Sany SY18U Excavator

Finance a brand new Sany SY18U excavator today with America's best 5 year 5,000 warranty! We've got the new SANY SY18U Excavators in stock and ready for your next rental or sale! Give us a call today!

SEE INVENTORY CALL 859.485.8500

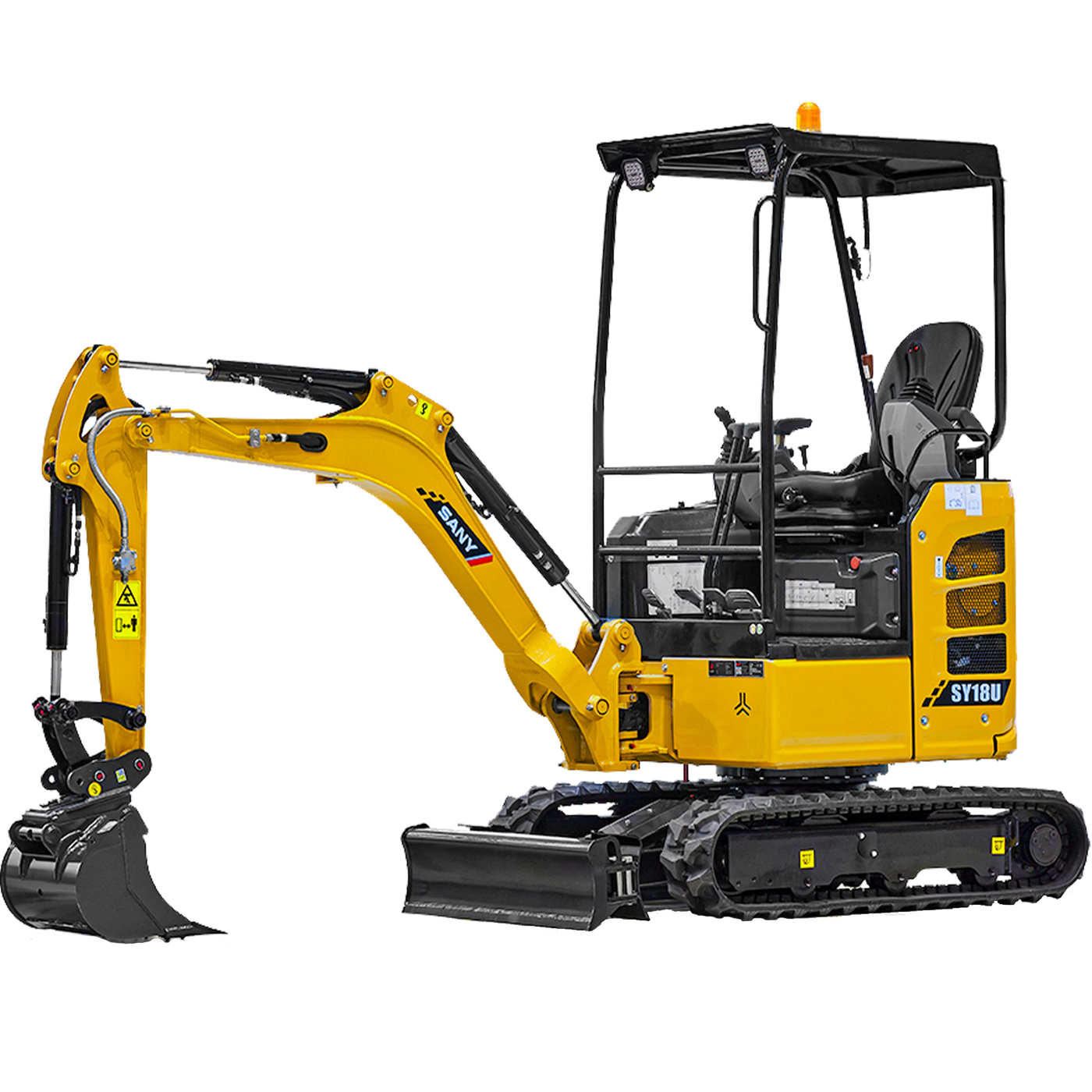

sany-sy18U-excavator-now-in-stock-for-your-next-sale-or-rental

Tier 4f/ Stage IV Certified

Net Power: 18.2 hp / 13.6 kW

Operating Weight: 4,244 lbs / 1925 kg

Bucket Breakout: 3,732 lbf / 16.6 kN

Ground Pressure: 4.4 psi / 30 kPa

Dig Depth: 8' 6"

SANY SY18U Excavators For Sale

Newman Tractor is an authorized SANY equipment dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for special financing options or for a free on-site demo! 859-485-8500

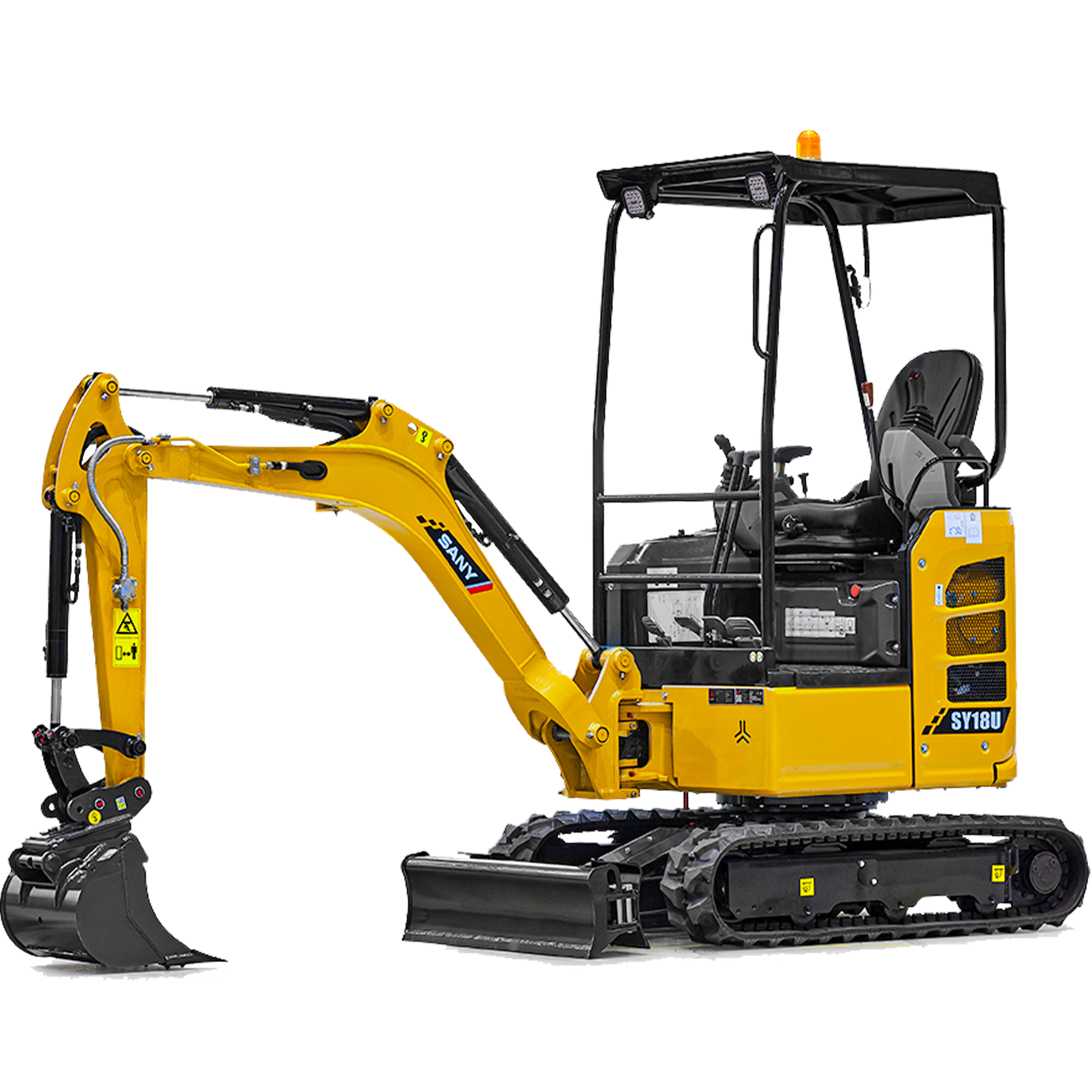

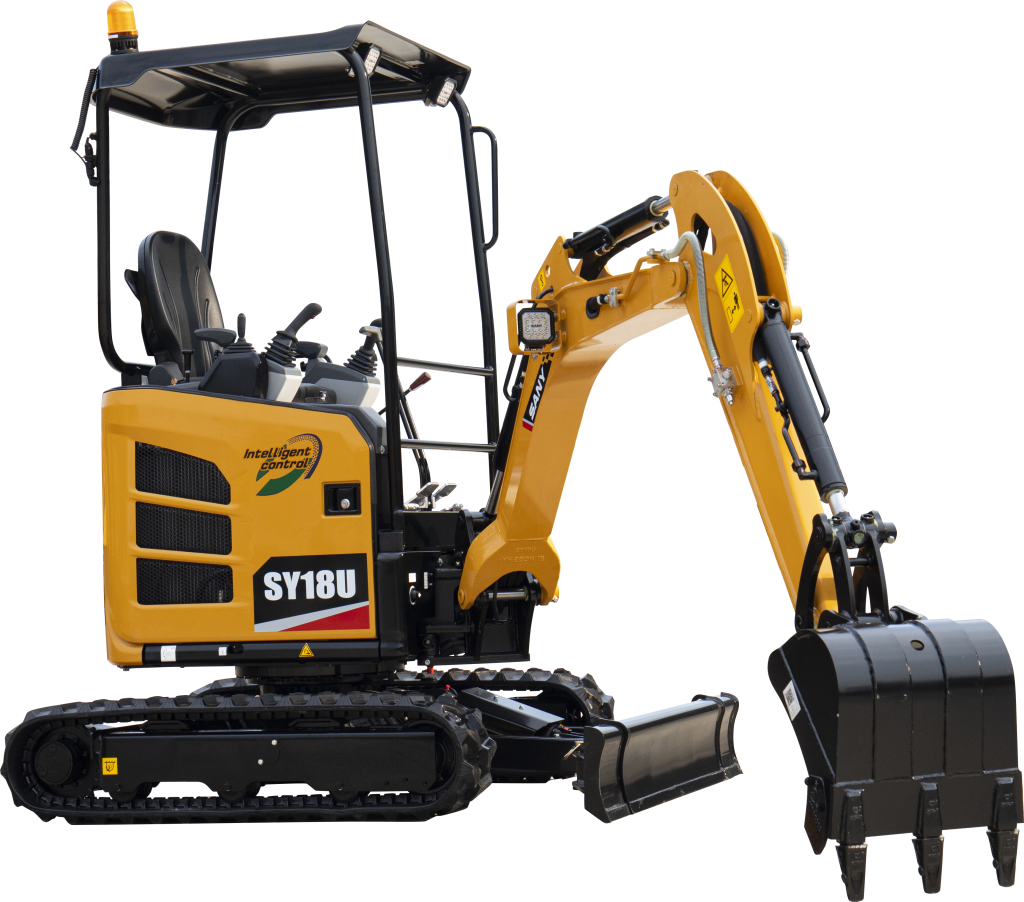

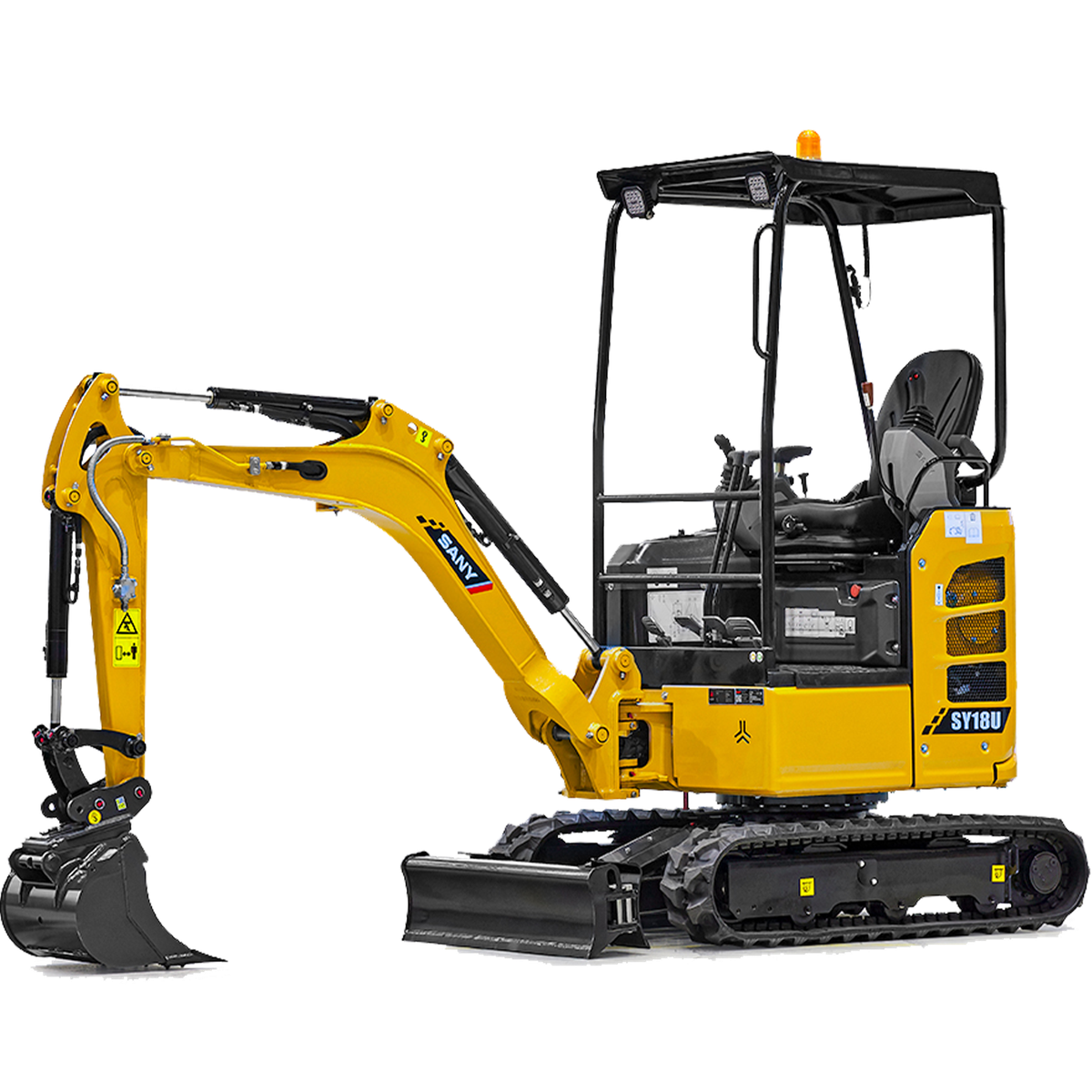

Meet the New SANY SY18U Excavator

The SANY SY18U mini excavator features high efficiency, low consumption and a comfortable operating environment. This 2 ton excavator has a wide range of applications in narrow spaces including forest, farm and indoors. Benefits & Features: High Performance & Reliability, Compact Design for Narrow Zone Operations, Strong Adaptability to Various Situations, Safe & Environmentally Friendly.

SANY SY18U

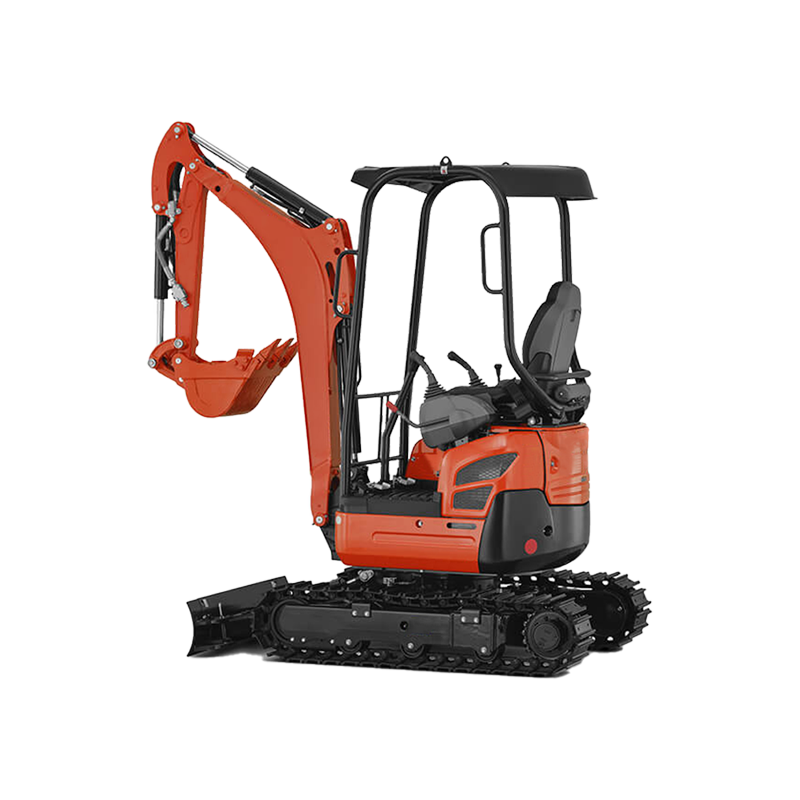

KUBOTA U17

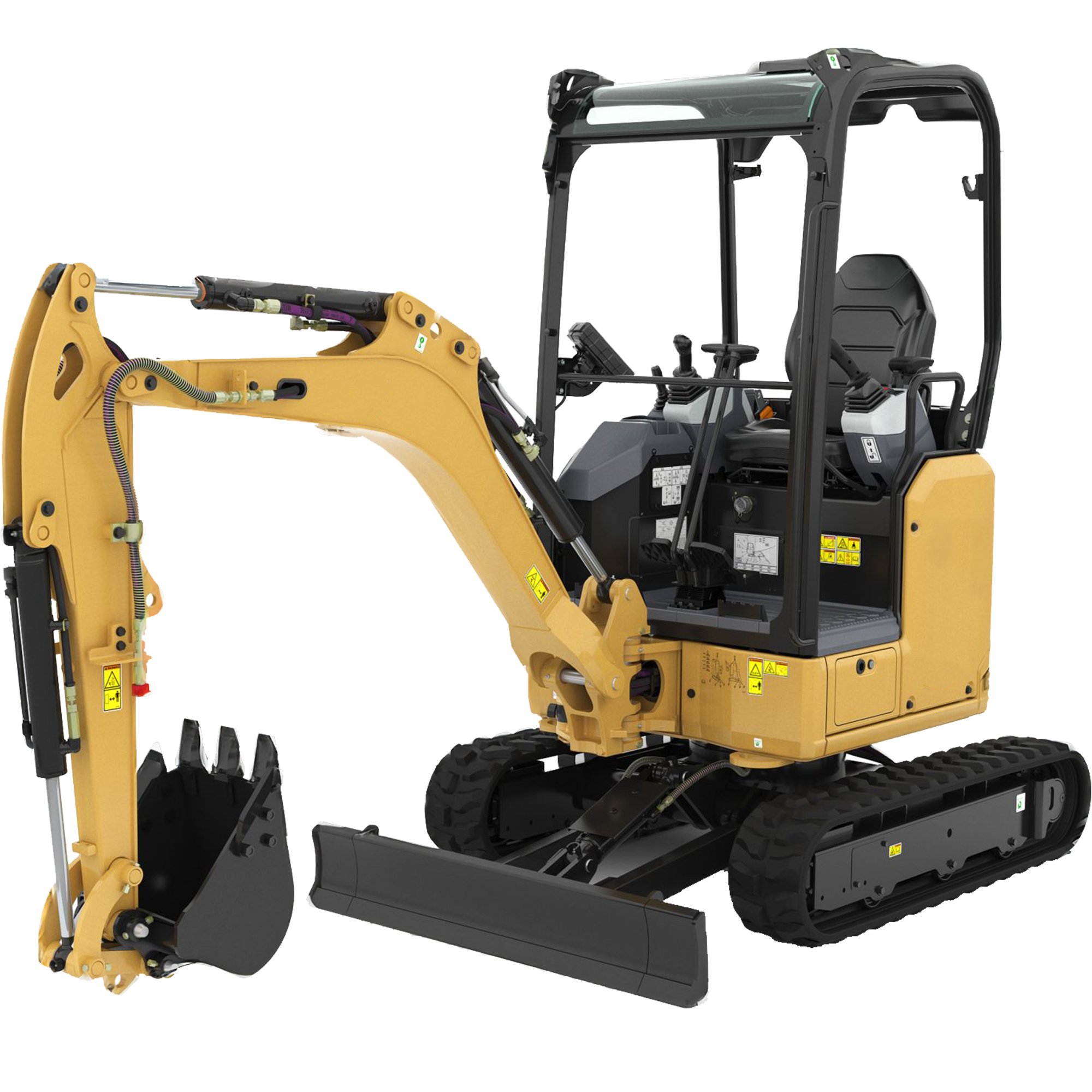

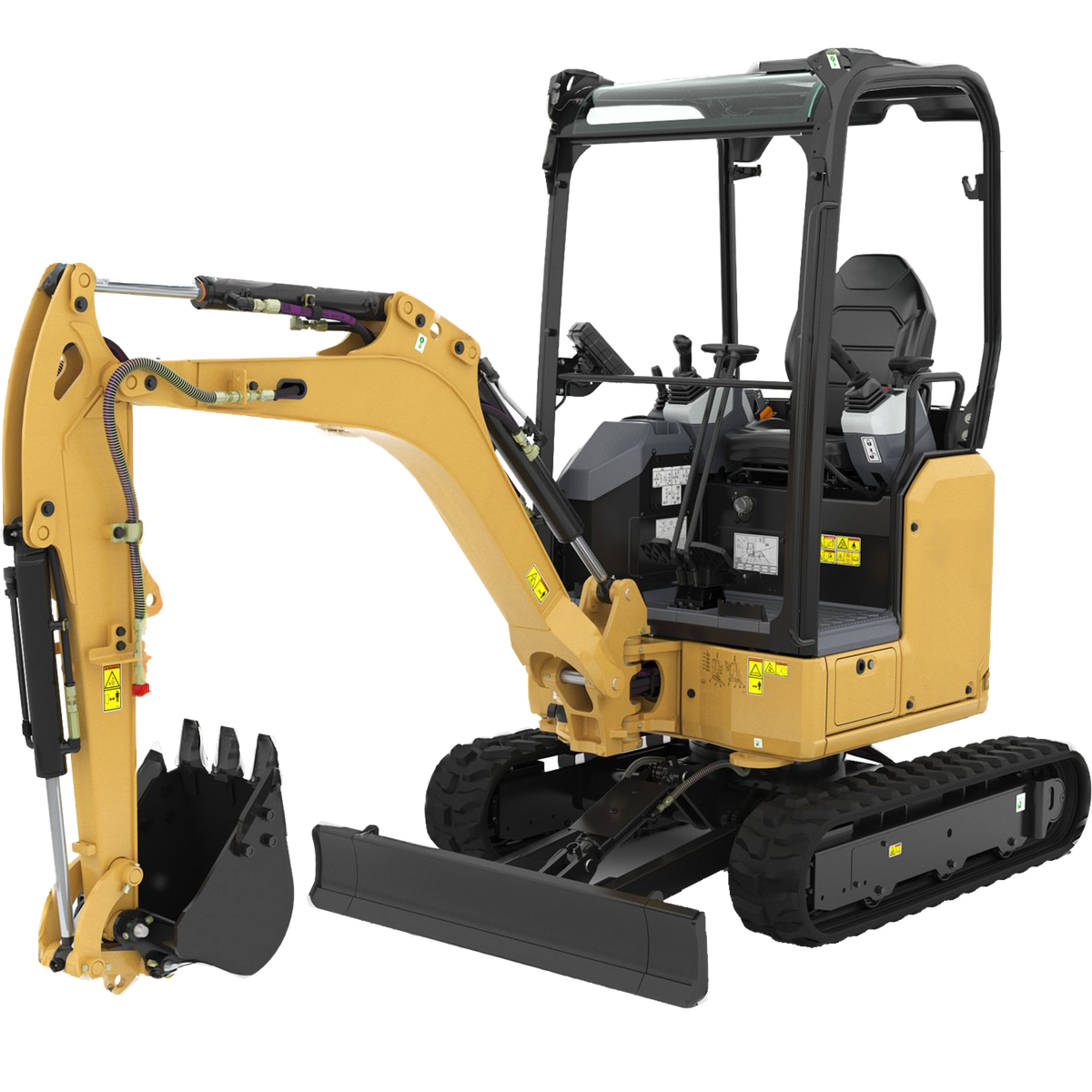

CAT 301.7 CR

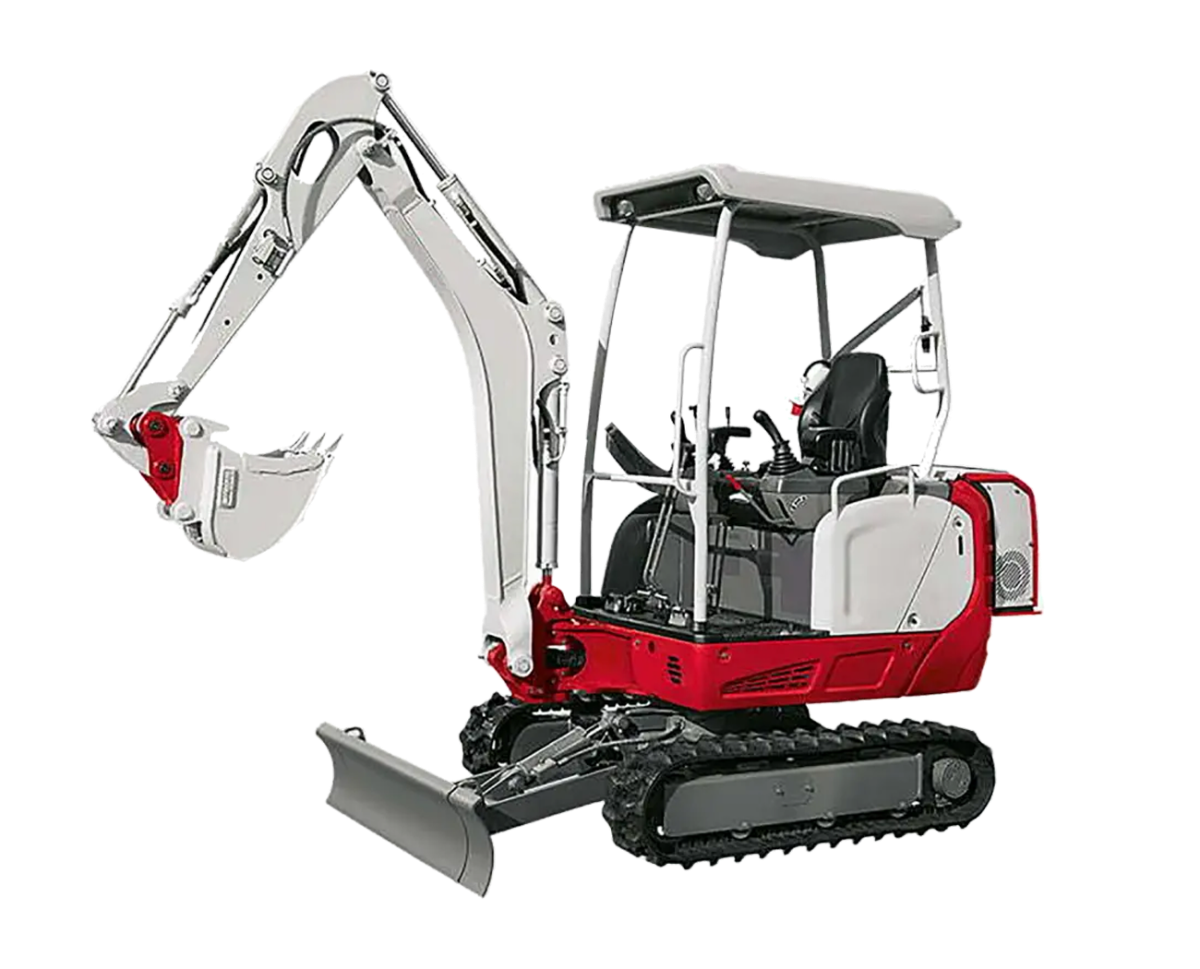

TAKEUCHI TB216

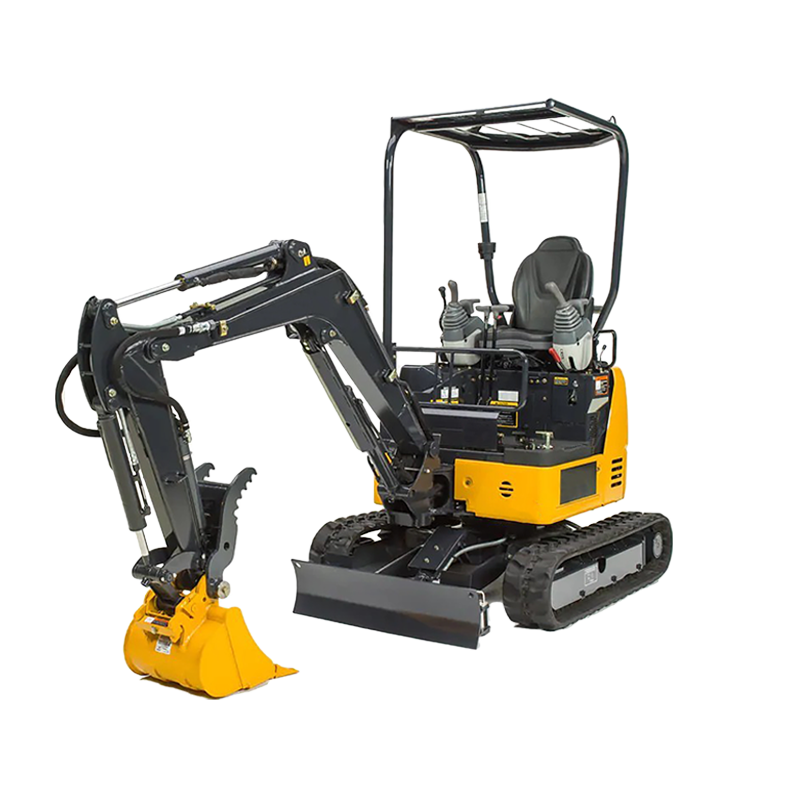

DEERE 17 P-tier

BRAND	MODEL	TAIL SWING	ENGINE MANUFACTURER	ENGINE POWER	OPERATING WEIGHT	DIG DEPTH	BUCKET BREAKOUT (KN)	MAX REACH
Kubota	U17	Zero	Yanmar	16.1	3704	91	15.2	12 ft 7"
Deere	17G	Short	Yanmar	14.5	3792	86	16	12 ft 6"
Kubota	KX018-4	Conventional	Kubota	16.1	3858	94	16	12 ft 8"
Yanmar	Vi017	Zero	Yanmar	13.5	3902	91	15.2	12 ft 1"
Takeuchi	TB 216	Conventional	Yanmar	14.9	3902	94	18.9	13 ft 5"
SANY	SY18U	Zero	Yanmar	18.2	4244	102	16.6	13 ft 7"
Caterpillar	301.7 CR	Short	Yanmar	21.1	4222	100	16.2	13 ft
Takeuchi	TB 216 Hybrid	Conventional	Yanmar	14.9	4277	94	14	13 ft 5"

SANY SY18U Tech Specs

Weight

Operating Weight (metric tons):

1.925

Operating Weight (lbs):

4,244

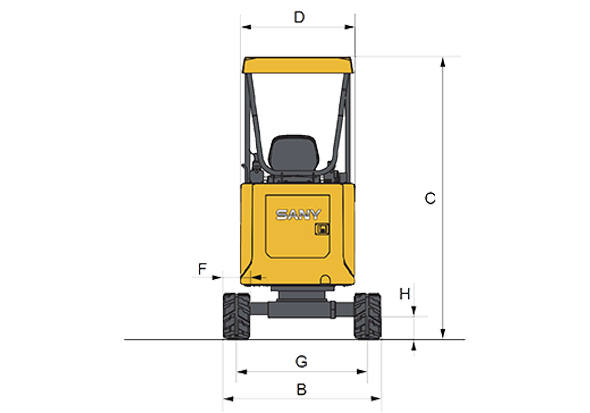

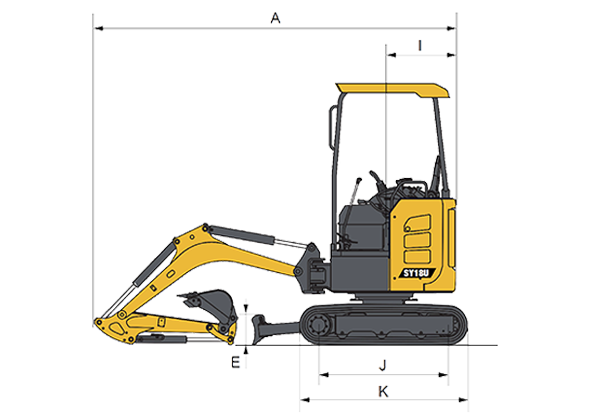

Dimensions

Transport Length (ft/in):

11' 6"

Transport Width (ft/in):

3' 3" / 4' 5"

Transport Height (ft/in):

7' 9"

Tail swing Radius (ft/in):

2' 3"

Tail Swing Type:

Zero Tail Swing

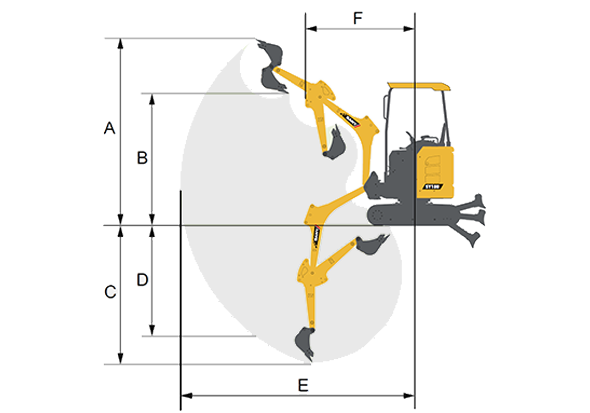

Performance

Stick Length (ft/in):

3' 10"

Boom Length (ft/in):

5' 10"

Max Dig Depth (ft/in):

8' 6"

Max Depth of Vertical Wall (ft/in):

7' 3"

Reach at Ground Level (ft/in):

13' 7"

Dump Height (ft/in):

8' 1"

Boom Swing, left/right (deg):

58° / 51°

Bucket Breakout Force (lbf):

3,732 lbf / 16.6 kN

Engine

Engine Make:

Yanmar

Engine Model:

3TNV80F

Engine Net HP:

18.2

Hydraulics

Pump Flow, Implement & Swing (gpm):

Max Relief Valve Pressure (psi):

3,553

Specifications, dimensions, weights, capacities, standard equipment, options, and availability are subject to change without notice. Images may show optional equipment or attachments not included as standard. Please contact us to confirm the latest product specifications, available configurations and pricing.

Sany Excavators For Sale

Spec Sheet

SANY SY18U Machine Features

• Engine: Yanmar 3TNV80F, Tier 4f
• Convenient service points for easy maintenance.
• Zero tail swing is ideal for tight job sites and working in confined spaces
• Lines are run down the boom and arm as standard equipment for easy fit-up and running of hydraulic attachments
• Load sensing hydraulics for increased fuel efficiency and maximized performance
• Hydraulically extendable undercarriage with adjustable front blade width standard
• Two-speed travel

High Performance Engine

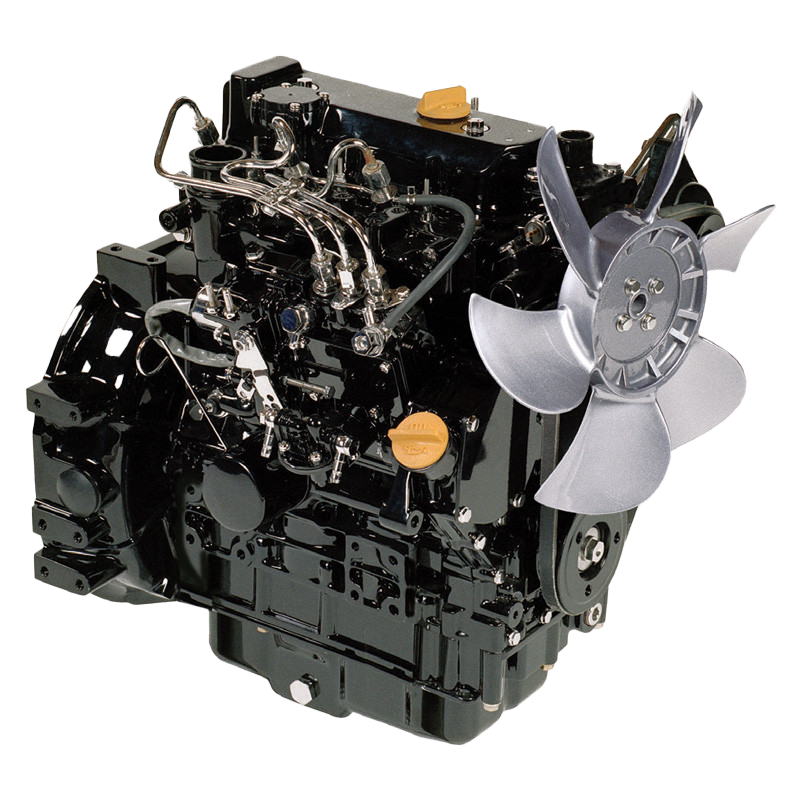

The SANY SY18U is powered by a robust 18.2 hp Yanmar 3TNV800F engine that meets Tier 4f emission standards, ensuring efficient performance and reduced environmental impact. Ergonomically placed levers provide a smooth, comfortable operator experience, while the boom turning movement combined with a mainframe swing enhances maneuverability.

Key features include:

Powerful & Efficient Engine: Yanmar 3TNV800F, 18.2 hp, Tier 4f compliant
Two-Speed Travel: 2.5 mph high, 1.9 mph low for optimal job site traversing
Operator Comfort: Ergonomically designed controls
Superior Maneuverability: Boom turning with mainframe swing and enhanced visibility
High Torque & Fuel Efficiency: Delivers strong digging force with reduced fuel consumption

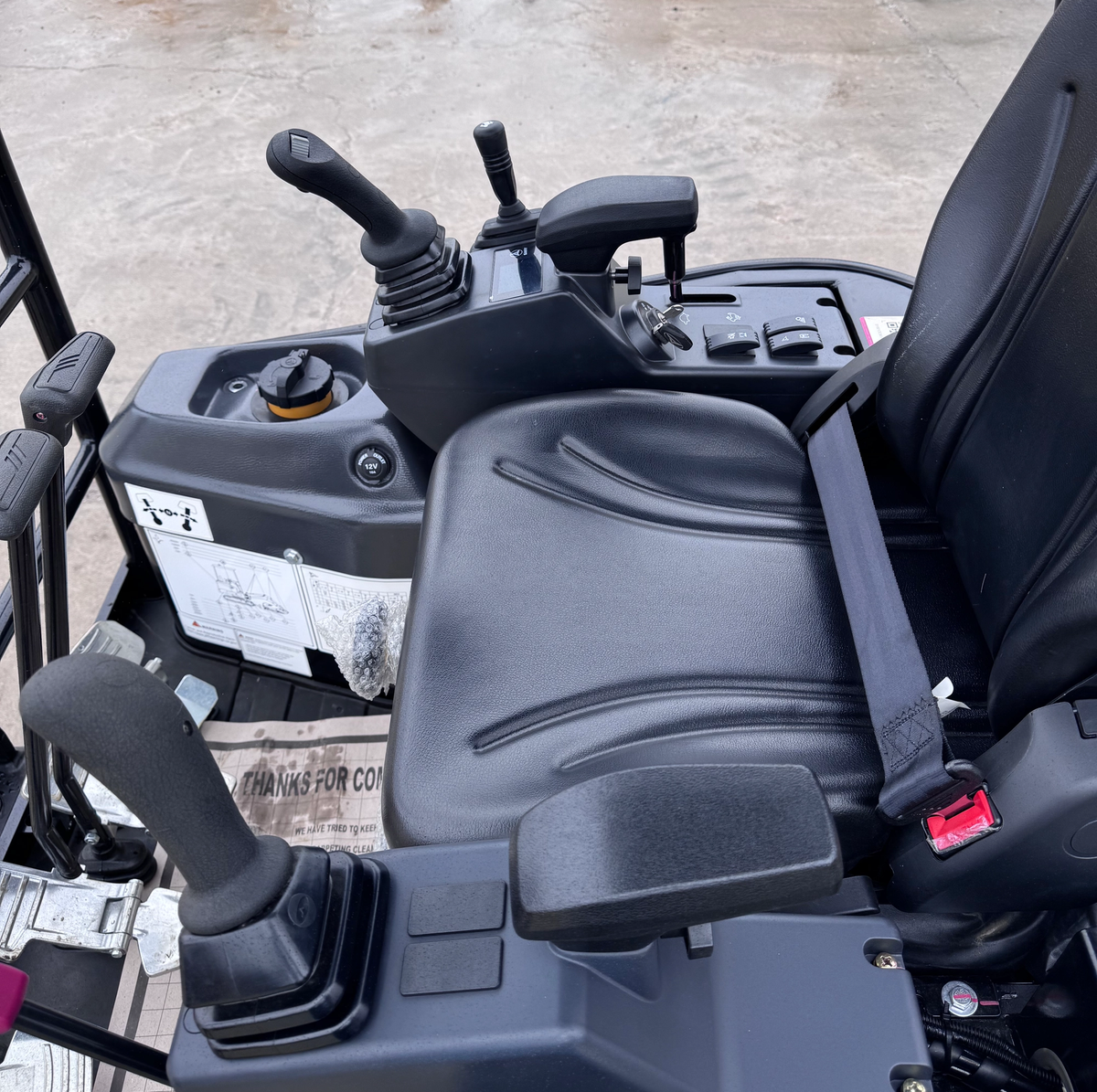

Operator Comfort

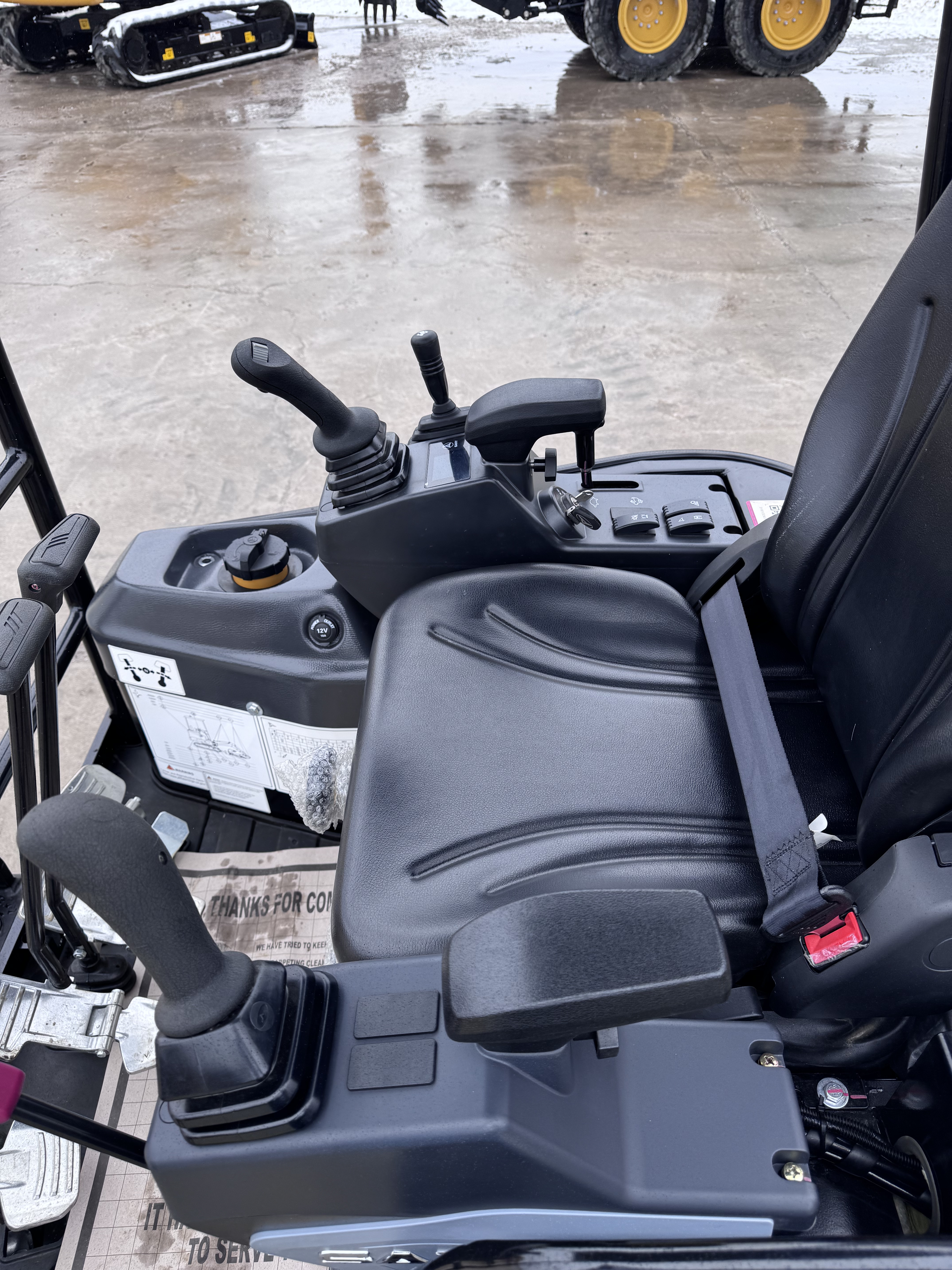

The SANY SY18U is designed with operator comfort in mind, ensuring a fatigue-free and productive work environment. A spacious cab with a fully adjustable suspension seat and ergonomic armrests provides maximum comfort during long hours of operation. Intuitive, precision-engineered controls, including easy-to-operate joysticks and conveniently placed switches, enhance handling and reduce strain.

Key features include:

Spacious & Comfortable Cab: Fully adjustable suspension seat with ergonomic armrests
Ergonomic Controls: Joysticks and switches designed for smooth, fatigue-free operation
Advanced Display: High-resolution digital screen for easy monitoring
Climate Control & Convenience: Air conditioning and USB connectivity for enhanced operator experience

See our inventory of sany excavators

Additional Features

COMPACT DIMENSIONS

With an upper width of only 980 mm, the SANY SY18C can easily drive through narrow passages and spaces, especially with the 1,925 kg, making the transportation more easily between different sites. The short tail swing is also ideal for tight job sites and confined spaces. Extendable Undercarriage and adjustable front blade. The hydraulically extendable undercarriage with adjustable front blade allows the machine to be configured for excellent working stability and optimum performance.

PERFORMANCE AND DURABILITY

Powerful Engine and Hydraulics
Owing to the self-independent SLSS hydraulic system, the 13.6 kW Yanmar engine and perfectly matched hydraulic pump, main valve and travel motor provide efficient and reliable performance, even in the toughest job sites. Low noise and vibration levels deliver comfortable operation.

Auxiliary Lines

The auxiliary lines are run down the boom and arm as standard equipment for easy fit-up and running of hydraulic attachments.

USER FRIENDLY OPERATION

The exchanges of steel track and rubber track make it accessible on the highroad, and suit various working environment.

Rotary arm
The working configuration of the arm ranges from 595 mm of left turn and 350 mm of right turn, meaning the outer edge of the track can be reached, ideal for the job in compact space like edge or corner of walls.

Convenient maintenance
The tail end of the machine is mainly designed for the daily maintenance, to make it easily accessible to the air filter and fuel oil filter, facilitating the maintaining job.

Sany SY18U Excavator Parts

Here at Newman Tractor, our Parts Department is always ready to answer questions about your Sany SY18U excavator and deliver the parts you need, when you need them. Get your order started by calling us at 859.888.1588

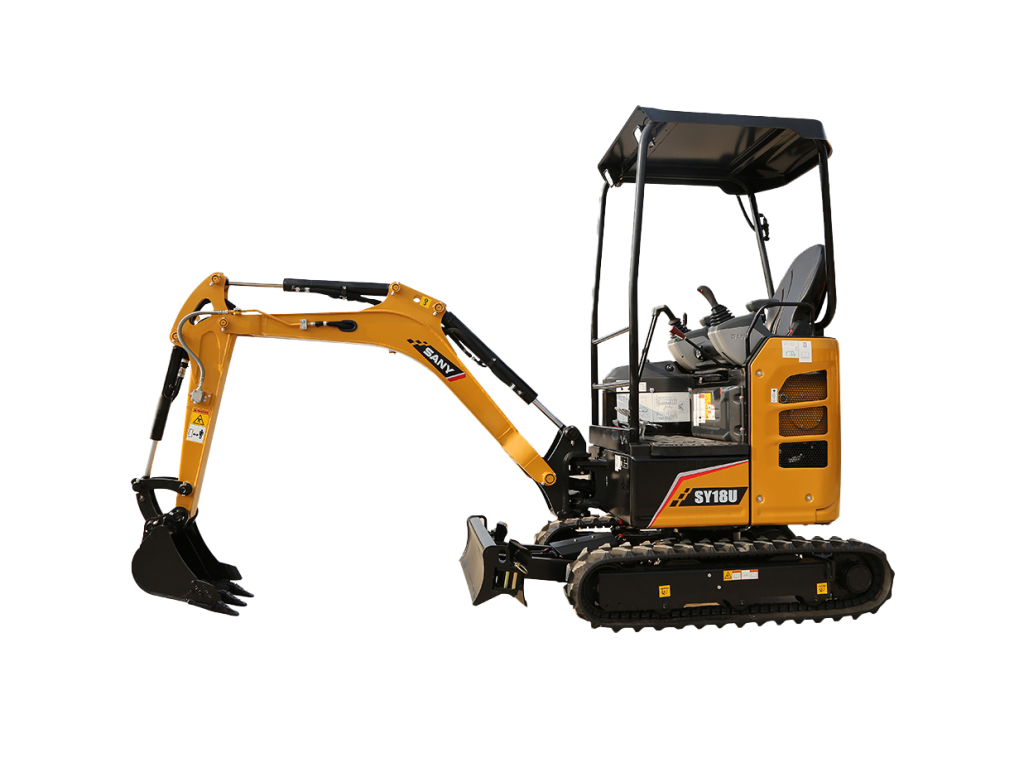

Looking for A Used SANY SY18U Excavator?

Buying or renting used makes sense for companies on a tight budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used excavator, Newman Tractor provides the fastest and most cost-effective solution to suit your needs. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models and ages. Use the button below to view our full inventory of used excavators.
