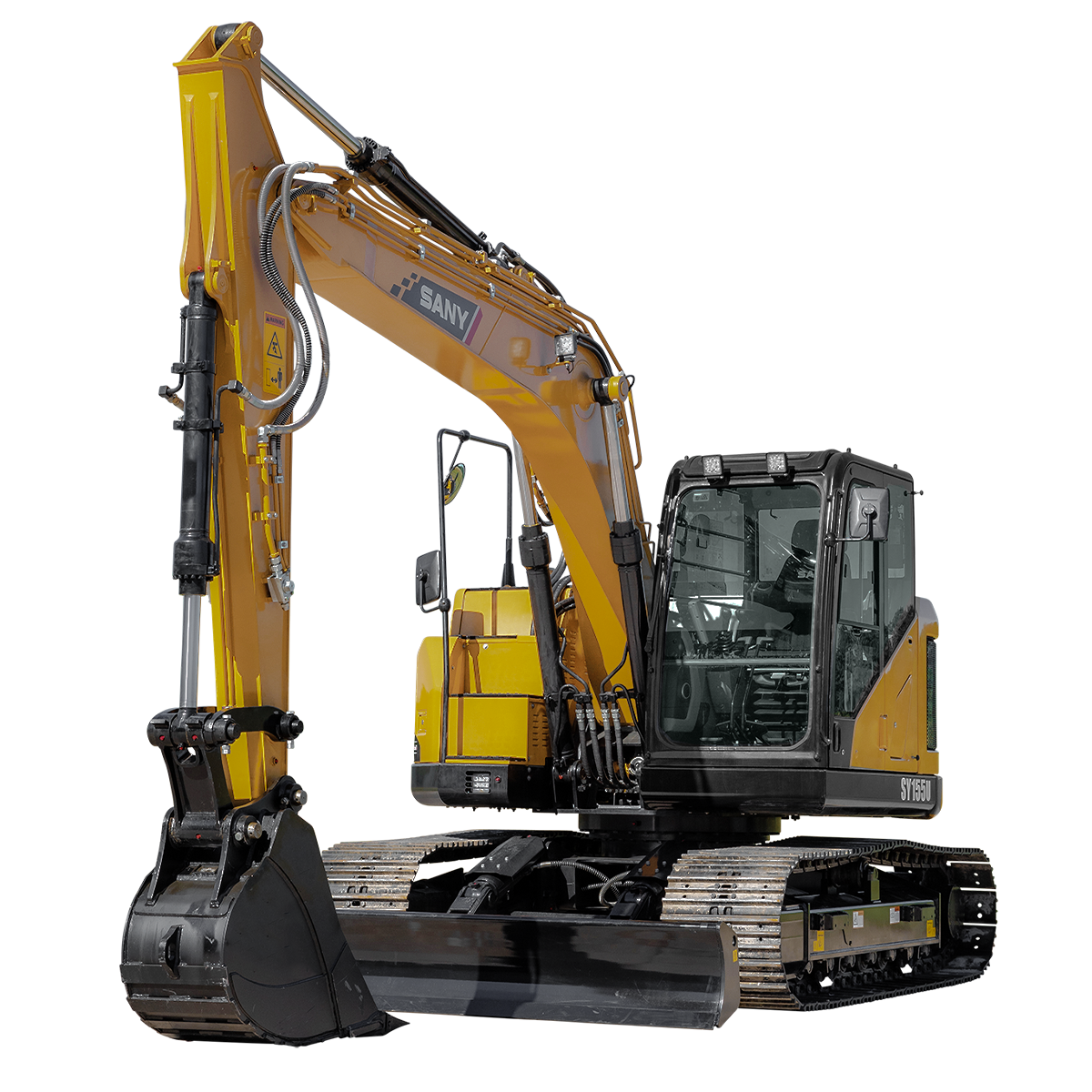

Sany SY155U Excavator

Finance a brand new Sany SY155U excavator today with America's best 5 year 5,000 warranty! We've got Sany SY155U excavators in stock and ready for your next rental or sale! Give us a call today!

SEE INVENTORY CALL 859.485.8500

sany-sy155u-excavator-for-sale-or-rentsany-sy155u-excavator-for-sale-or-rent

Tier 4f/ Stage IV Certified

Rated Power: 105hp

Operating Weight: 35,274 lb

Bucket Breakout: 23,155 lbf

Dig Depth: 17' 11"

Sany LogoSany Logo

Sany SY155U Excavators For Sale

Newman Tractor is an authorized Sany equipment dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for financing deals or for a free on-site demo! 859-485-8500

Meet the New Sany SY155U Excavator

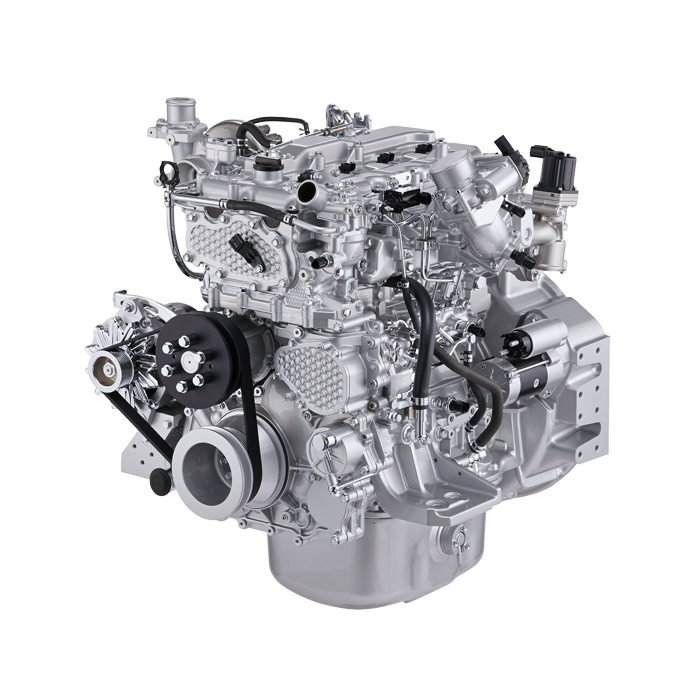

The Sany SY155U excavator is designed to help you work efficiently while maximizing your job site productivity. SANY’s SY155U is one of the contruction industries best compact hydraulic excavators. Powered by the reliablility and efficiency of an Isuzu engine the Sany SY155U will exceed expectations. The Sany SY155U transports easily and can be street-ready with the bolt-on rubber pad option. This excavator boast minimal tail swing and delivers high performance on the jobsite all day long!

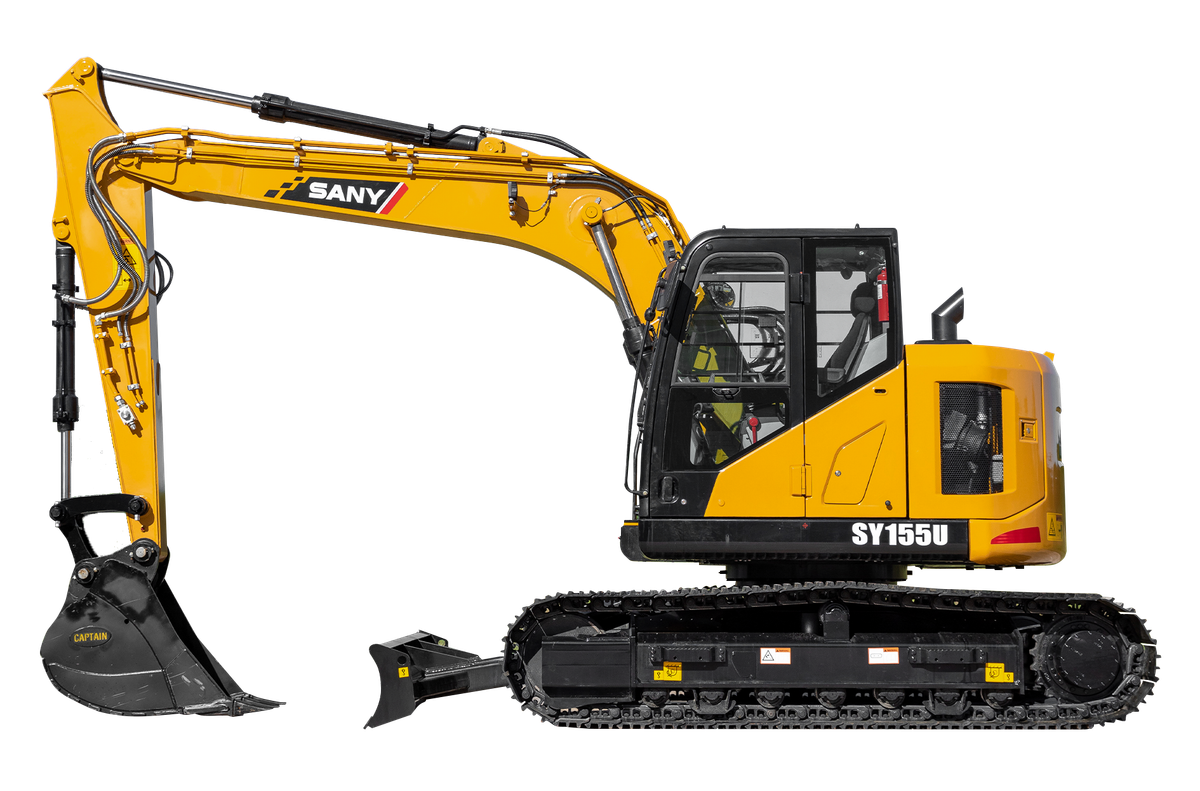

Sany-sy-155U-excavator-for-sale-side-viewSany-sy-155U-excavator-for-sale-side-view

Sany SY155U Tech Specs

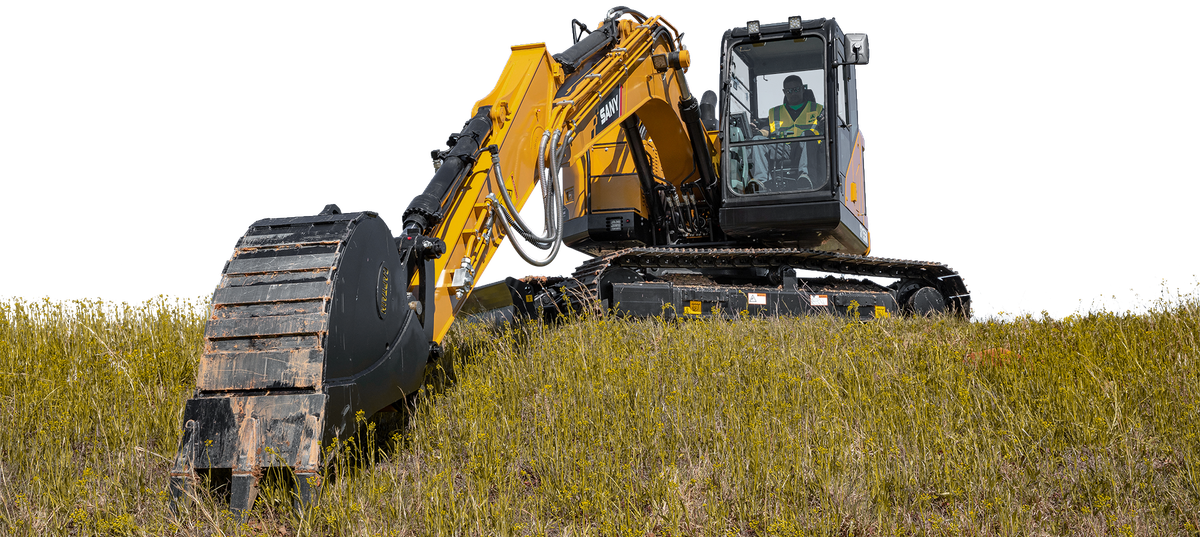

sany-155u-tech-specs-excavator-diggingsany-155u-tech-specs-excavator-digging

OVERAL DIMENSIONS

Boom Length: 15' 1"

Stick (Arm) Length: 8' 2"

Transport Length: 26' 10"

Transport Width: 8' 6"

Transport Height: 9' 3"

Upper Structure Width: 8' 2"

Blade Height: 19"

Track Width: 24"

Track Gauge: 6' 6"

Ground Clearance: 17"

Tail Swing Radius: 4' 11"

Track Length on Ground: 9' 7"

Track Length: 12' 0"

TECHNICAL SPECIFICATIONS

Operating Weight: 35,274 lb

Ground Pressure: 5.9 psi

Engine: ISUZU AR-4JJ1XASC

Displacement: 3.0 L183.0 in3

Gross Power: 105 HP

Hydraulics: Positive Flow Control with Pilot Control

Main Hydraulic Pump: Axial Piston – Variable Displacement

Operating Flow: (maximum)252.0 L/min66.6 gal/min

Operating Pressure:| (maximum)34.3 MPa4975 psi

BrakeTravel Pressure: (maximum)34.3 MPa4975 psi

Travel Speeds: (maximum) 3.1 / 5.3 km/hr1.9/ 3.3 mph

Travel Effort: (maximum)114.0 kN25,628 lbf

Grade Capability: 35°

TrackTrack Shoe Width: 24"

Track Rollers: (per side)7Carrier Rollers (per side)1

WORKING RANGE

Boom Length: 15' 1"

Stick Length: 8' 2"

Maximum Digging Height: 30' 3"

Max Dump Height: 22' 2"

Max Dig Depth: 17' 11"

Max Vertical Dig Depth: 12' 5"

Max Reach at Ground Level: 27' 4"

Min. Swing Radius: 6' 10"

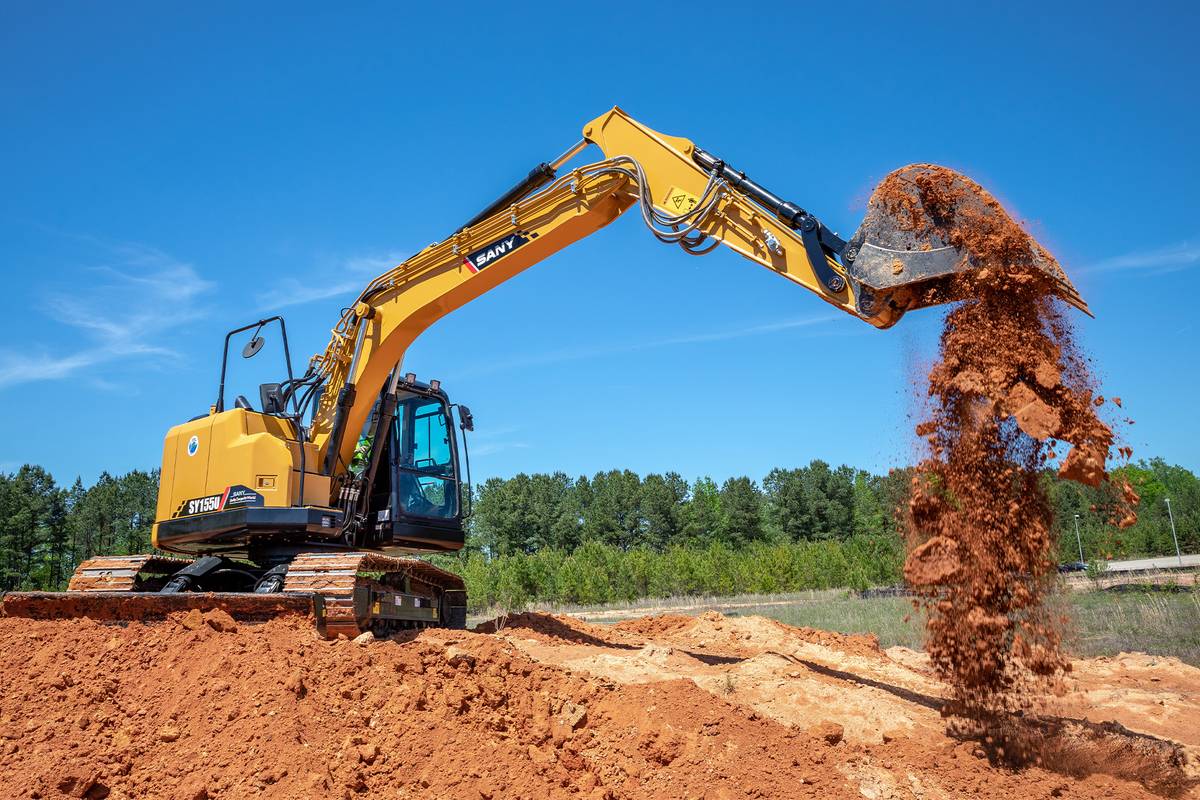

Sany-SY155U-working-on-the-jobSany-SY155U-working-on-the-job

Sany SY155U Machine Features

• Minimum swing radius for tight job sites.

• Auto-deceleration system maximizes efficiency while reducing fuel consumption.

• New design offers increased speed while maintaining smooth hydraulic control.

• Standard features include two-way auxiliary hydraulics, a backfill blade, and a pattern control change valve to increase productivity.

The SY155U 's Auto Deceleration System

The function of auto deceleration reduces fuel consump­tion by 5-10%. When an operation has been stopped for 3.5 seconds, the engine speed drops automatically to idle level and maintains the idling state. When the operation is resumed by maneuvering the control levers, the engine speed will increase to the set rpm within 0.1 seconds. The working capability is restored instantly. The auto-idle switch is always active after the excavator is restarted each time.

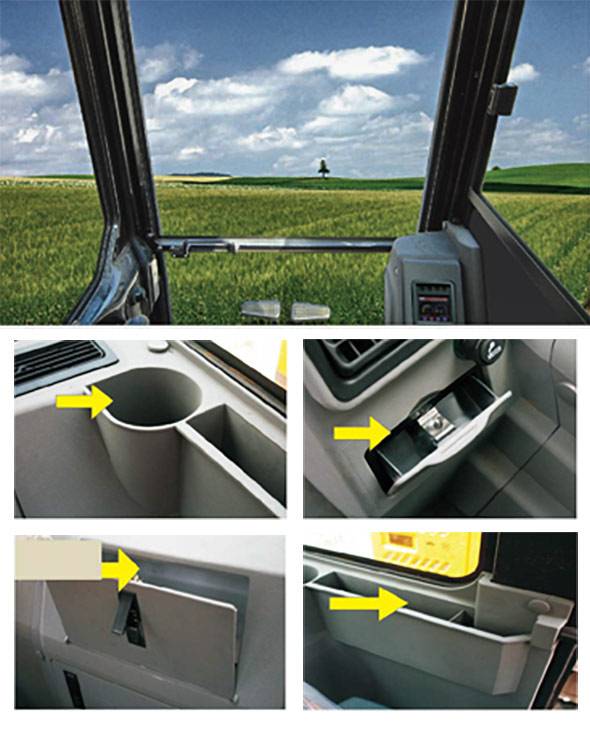

interior comfort of a sany sy155u excavatorinterior comfort of a sany sy155u excavator

Operator Comfort

Innovative Large Cab

Larger windows of the Sany SY155U 's spacious cab provide you with a wider view. The operator can clearly see the work equipment condition and the surrounding through the front, side, and back windows.

The upper window of the cab can be moved to the top of the cab when the front window is unlocked. The roof hatch is openable, through which the cab can have better ventilation and more lights.

Multi-Level A.C.

The high-quality automatic air conditioner provides a better cooling effect. It creates a more comfortable operating environment by automatically regulating the temperature and humidity inside the cab as the ambient condition changes.

Sealed & Quiet

The Sany Sy155U comes equipped with an excellent sealin­g ring, the cab is free from dust and rain. Besides the low-noise design, indoor noise under 74 decibels can effectively relieve the fatigue of the operator.

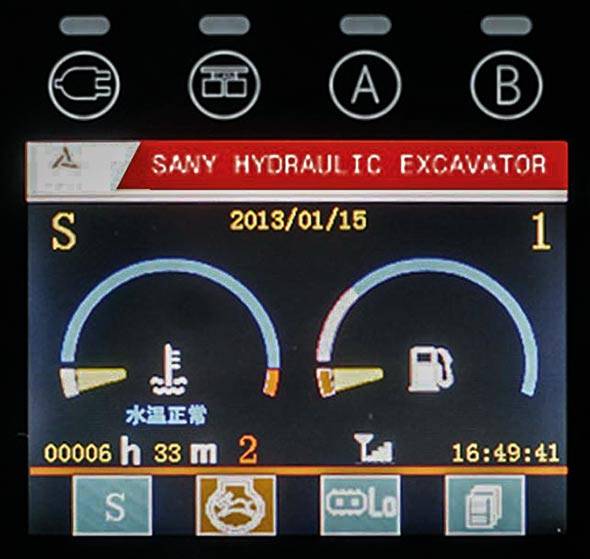

LCD Display Controller

A multi-functional controller ensures the system constantly in optimum condition. When the joysticks are not operated for 3.5 seconds, the controller immediately commands the engine to lower the speed in order to reduce fuel consumption; when the engine or hydraulic system is abnormal, the fault information will appear on the monitor to warn you. High brightness, wide viewing angle industrial LCD allows the operator to easily getting the information in the seat.

LCD Display for a Sany SY75CLCD Display for a Sany SY75C

Additional Features

  • When equipped with quick coupler, operators can easily reduce the time it takes to change work tools giving convenience and flexibility on the jobsite.
  • The Sany SY155U has load width of 102″ allowing for transportation ease
  • The steel tracks of the Sany 155U come standard with the option of bolt-on rubber pads to make your machine street-ready for work on pavement or concrete

The SY155U Minimal tail swing radius allows operation in extremely confined spaceserators.

Sany SY155U Excavator Parts

Sany SY155U parts for saleSany SY155U parts for sale

Here at Newman Tractor, our Parts Department is always ready to answer questions about your Sany SY155U excavator and deliver the parts you need, when you need them. Get your order started by calling us at 859.888.1588

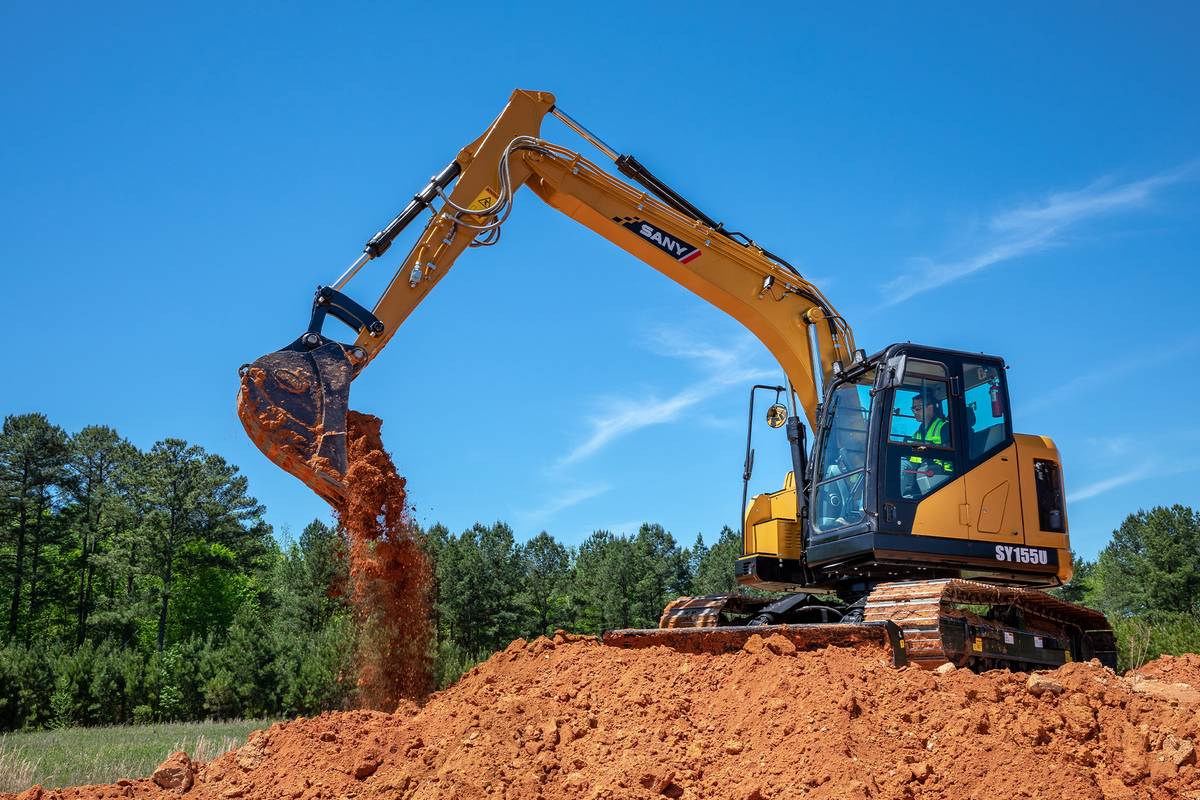

Looking for A Used Sany SY155U Excavator?

Buying or renting used makes sense for companies on a tight budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used excavator, Newman Tractor provides the fastest and most cost-effective solution to suit your needs. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models and ages. Use the button below to view our full inventory of used excavators.

Used Excavators For Sale Rent an Excavator

used-sany-sy155u-for-sale-rentused-sany-sy155u-for-sale-rent
