Broce MK1 Street Sweeper

Broce Brooms was the original and most recognizable names in the street sweeper industry. The Broce MK1 production street sweeper will save you time and materials. Give us a call and we can help you finance a rent a new Broce Broom today!

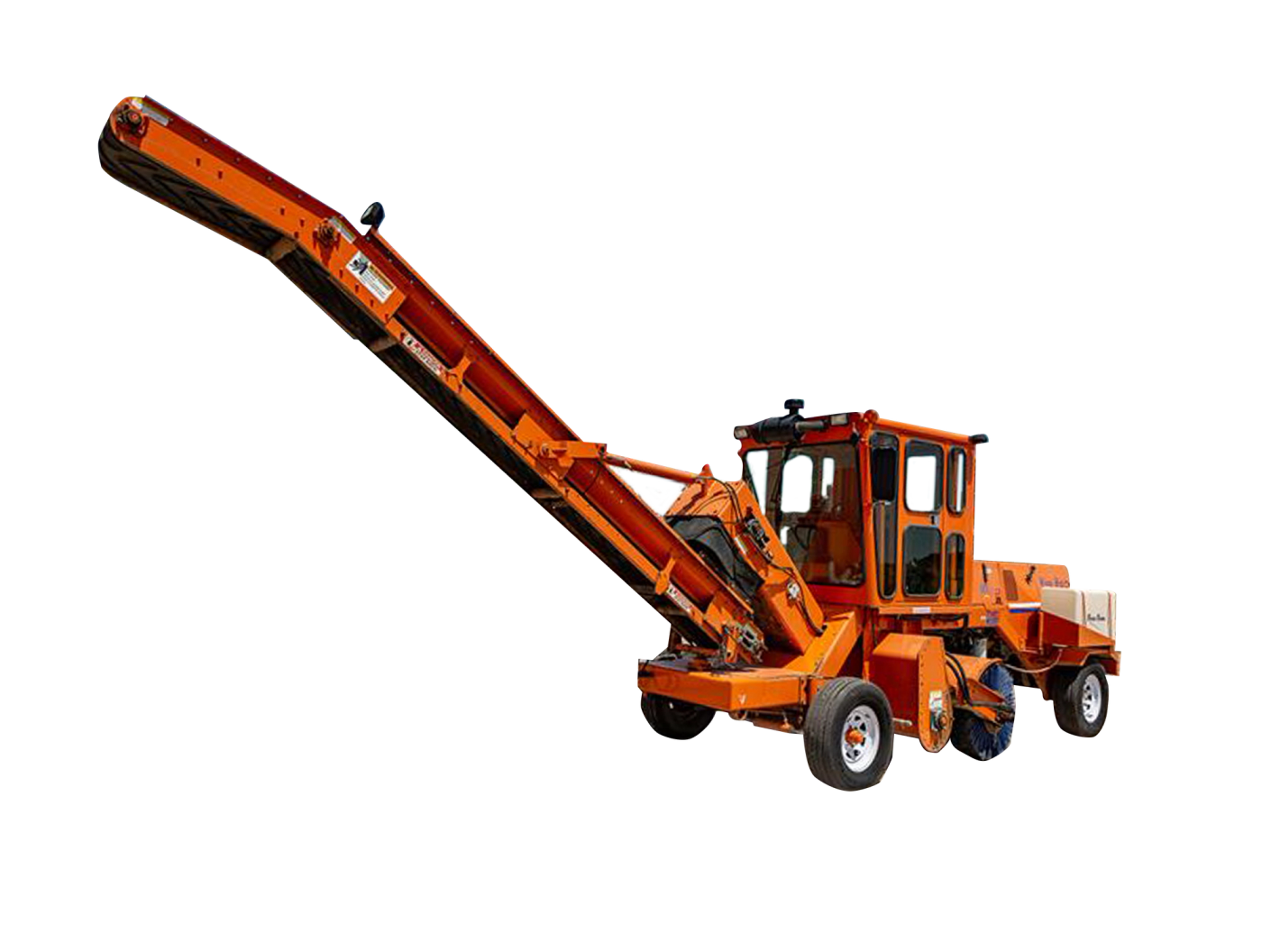

Broce-Broom-MK1-Header-Equipment-Cutout

Tier 4f/ Stage IV Certified

Engine: C4.4 92HP @2200 RPM Tier III

Operating Weight: 9,200 lbs

Brush Length: 10” Tubular Type

Cab Type: Enclosed

broce-brooms-logo

Broce MK-1 Transfer Sweeper for Sale

The Broce MK1 construction sweeper is the boss in the line of Broce brooms. This all-in-one road sweeper will save you time and material. The Broce Mk1 street sweeper combines both the sweeping and loading in one pass. It's unique design and conveyor articulation make it easy to load any truck or bucket loader from the front or from either side of the machine. The MK-1 construction broom is ideal for clean up after a milling project on local roads and highways but can be used for any road clean up / cold planning task your city and municipality might have. Call Newman Tractor at 859-888-1813 to buy or rent a Broce Broom today.

Broce MK1 Construction Sweeper Specs

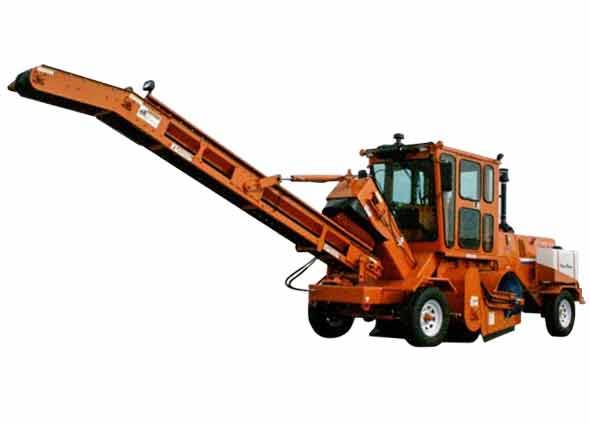

Broce-MK1-street-sweeper-for-sale-with-optional-equipment
MK-1 Optional Equipment

• Rear Windshield Washer and Wiper
• Tilt & Telescoping Steering
• Turbo II Precleaner
• Air Intake Extension Stack
• Hydraulic Temperature Gauge
• Audible Engine Alarm System
• Safety Engine Shut Down System
• AM/FM Stereo Package
• Dual Axle 5th Wheel Trailer
• Front Fenders

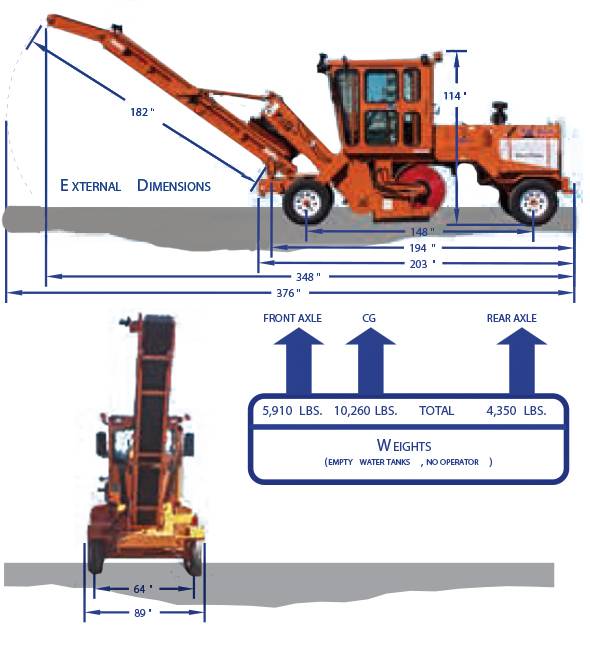

broce-mk1-street-sweeper-dimensions-and-specs
Popular MK1 Applications

• Milling clean-up
• Sand and salt reclamation from winter build-up
• Chip-seal reclamation
• Interstate and turnpike barrier wall clean-up
• Rumble strip milling clean-up

Broce MK1 Construction Sweeper/ Conveyor Features

• Enclosed Cab with Safety Glass and Front Washer and Wiper
• Certified Roll Over Structure ISO 3471 Compliant
• Hydrostatic Hand Control
• Enclosed Electrical Panel in Cab
• Suspension Seat with Arm Rests
• Seat Belts ISO 6683 Compliant
• Instruments and Controls - Water Temperature, Oil Pressure, Volt Meter, Tachometer, Hour Meter, Fuel Gauge, Reverse Alarm, Rear View Mirror, Engine Throttle, Brakes, Directional Controls, Electric Parking Brake with Engaging Light, Traffic Horn and Brush Controls
• Fuel Tank Capacity - Approx. 29 Gallons
• Cab Heater with Defroster Plenum

• Weight 9200#
• 6000# Front Axle with Disc Brakes
• Poclain Rear Drive Motors
• Sauer-Danfoss Hydrostatic Pump
• 6 x 16” Steel Wheels
• Tires - LT 235/85R16 (Load Range E)
• Hydraulic Tank Capacity Approx. 75 Gallons
• Lockable Filler Caps
• 100 Mesh Suction Screen
• Dual Return Lines with 10 Mesh Screens in Tank
• Filters - Two 10 Micron Filters (suction and return)
• Sauer-Danfoss Load Sense Pump
• Sauer-Danfoss Steering Pump
• C4.4 92HP @2200 RPM Tier III

• Air Cleaner - Donaldson Dual Element Type with Precleaner
• Brush Core - v
• 10” x 32” Wafers
• Sauer-Danfoss Core Motor
• Main Frame - All Welded 8” Formed Channel with Gussets at Stress Points
• Vari-Speed Conveyor
• Conveyor Lighting
• Joystick Conveyor Positioning Controls
• Electric Core Lock
• Light Group
• Work Lights
• Vari-Speed Brush
• Vari-Speed Auger/Reversible
• Rear Fenders
• Pressurized Air Conditioning

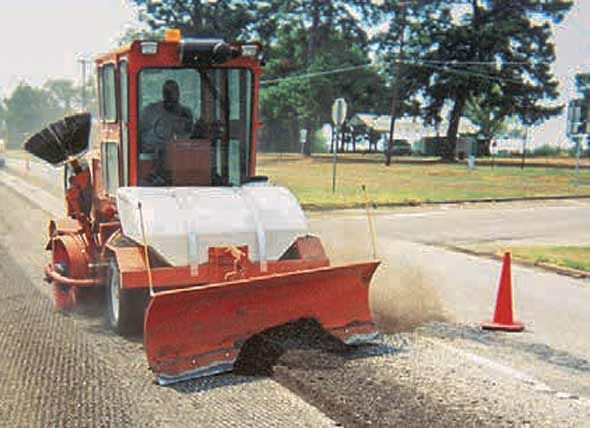

Broce-MK1-sweeping-and-loading-road-construction
Both Sweeping and Loading in MK1

The Model 350 Broce Broom with blade and gutter attachment working in front of the MK1 construction sweeper make a perfect team to complete cleaning process.

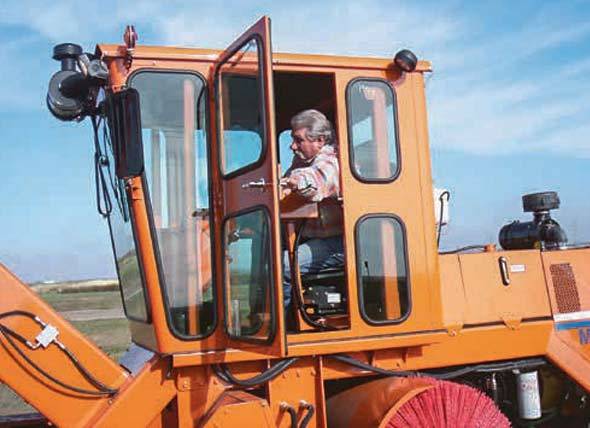

Sound Suppressed Cab

The Broce MK1 was designed for maximum comfort and visibility, the enclosed cab offers two doors with gas shocks, tinted safety glass, front windshield wiper, padded floor mat, and great visibility

broce-mk1-street-sweeper-sound-suppressed-cab-feature

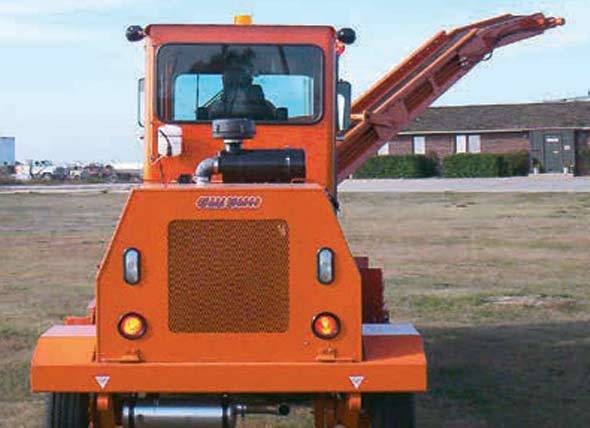

broce-mk1-street-sweeper-articulated-conveyor-feature
Conveyor Articulation

The conveyor of the Broce MK1 construction brush allows for articulation for loading in the front or either side of the machine. This makes the MK1 sweeper truck the ideal machine to sweep and load on your next road construction project!

Broce MK1 Construction Sweeper/ Conveyor Parts

brock-brooms-mk1-parts-and-service

Here at Newman Tractor, our Parts Department is always ready to answer questions about your Broce MK1 construction broom, conveyor and deliver the parts you need, when you need them. Get your order started by calling us at 859.888.1588

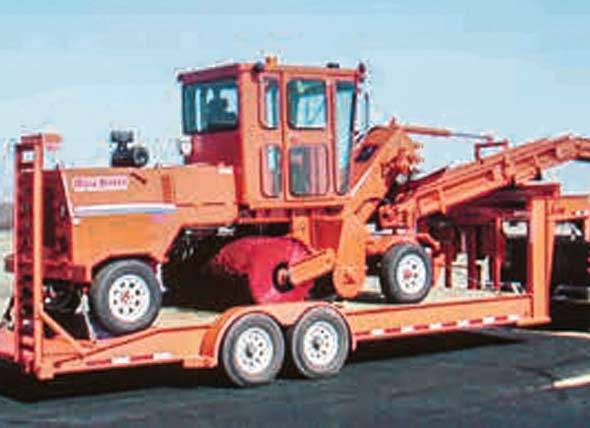

broce-mk1-sweeper-conveyor-rental

Looking to Rent a Broce MK1?

Every Broce MK-1 transfer sweeper on our lot is professionally maintained and tested by our highly experienced mechanics to ensure each piece of construction equipment is ready to perform in peak condition and ready to roll out when you call.

Save time by using our online rental quote tool for monthly or long term rentals near you! Fast shipping and rent-to-own options available.

Looking for A Used MK1 Sweeper/ Conveyor?

Buying or renting used makes sense for companies on a tight budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used street sweeper with conveyor, Newman Tractor provides the fastest and most cost-effective solution to suit your needs. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models and ages. Use the button below to view our full inventory of used transfer sweepers.

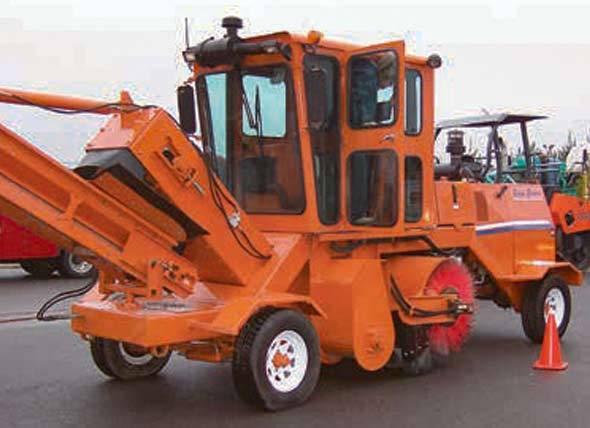

used-mk1-sweepers-for-sale-or-rental
