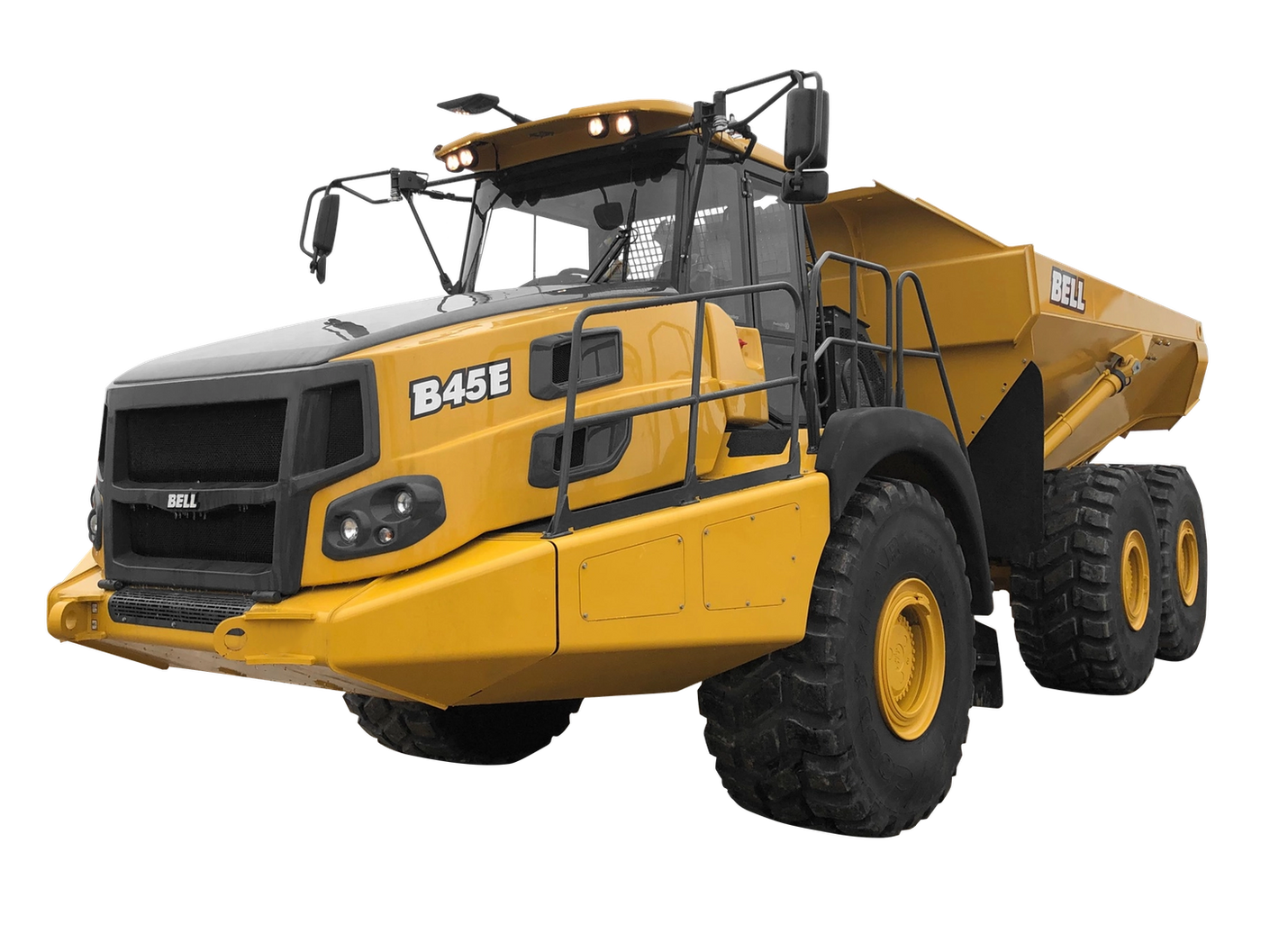

Bell B45E Articulated Dump Truck

Haul more, for longer at the lowest cost per ton. The New Bell E-Series Truck line-up boasts the best fuel economy in it's class. We've got new Bell B45E Trucks in stock and ready for sale or your next rental! Give us a call today.

SEE INVENTORY CALL 859.888.1813

Tier 4f/ Stage IV Certified

Gross Power: 390 kW (523 hp)

Heaped Capacity: 25 m3 (33 yd3)

Rated Payload: 41,000 kg (90,390 lb)

Operating Weight: 72,877 kg (160,666 lb)

Bell B45E Articulated Dump Trucks For Sale

The Bell B45E takes performance to the next level.

The all new Bell B45E Articulated Dump truck is built to perform. It's been rated best in class for it's off-road abilities. It's also has been ranked best in class for comfort and ease of operation. With cutting edge technologies like its on board weighing and remote production monitoring, these trucks come packed with additional features that set it apart from its competition. Give us a call and give one a try on your next construction project today!

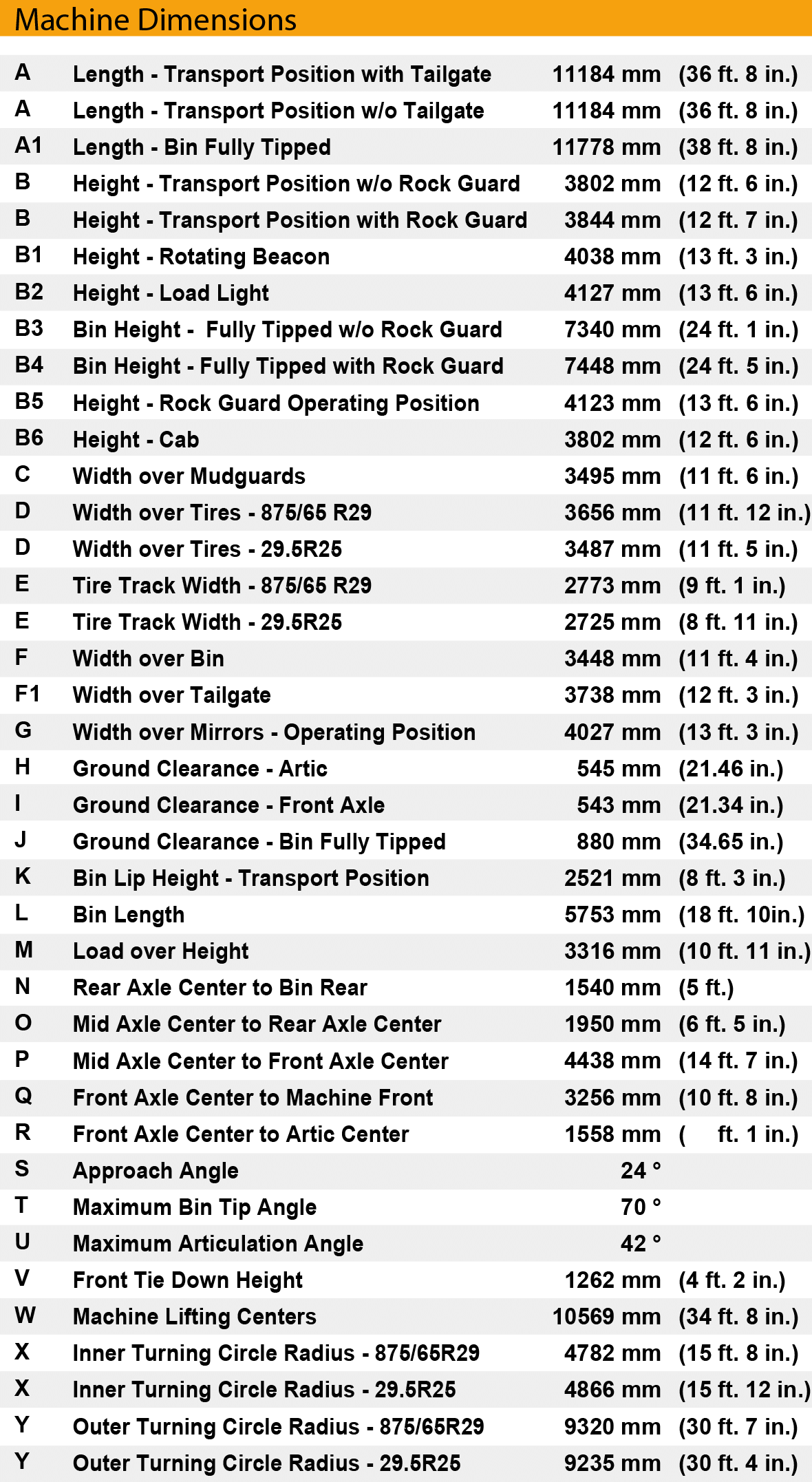

Dimensions

Technical Data - Bell B45E Articulated Dump Truck

ENGINE

Manufacturer

Mercedes Benz (MTU)

Model

OM471LA (MTU 6R 1300)

Configuration

Inline 6, turbocharged and intercooled.

Gross Power

390 kW (523 hp) @ 1,700 rpm

Net Power

369 kW (495 hp) @ 1,700 rpm

Gross Torque

2,460 Nm (1,814 lbft) @ 1,300 rpm

Displacement

12.8 liters (781 cu.in)

Auxiliary Brake

Engine Valve Brake

Fuel Tank Capacity

352 liters (93 US gal)

AdBlue® Tank Capacity

40 liters (11 US gal)

Certification

OM471LA (MTU 6R 1300) meets EU Stage IV / EPA Tier 4 Final emissions regulations.

TRANSMISSION

Manufacturer

Allison

Model

4700 ORS

Configuration

Fully automatic planetary

transmission.

Layout

Engine mounted

Gear Layout

Constant meshing planetary gears, clutch operated

Gears

7 Forward, 1 Reverse

Clutch Type

Hydraulically operated multi-disc

Control Type

Electronic

Torque Control

Hydrodynamic with lock-up in all gears

BRAKING SYSTEM

Service Brake

Dual circuit, full hydraulic actuation wet disc brakes on front and middle axles. Wet brake oil is circulated through a filtration and cooling system.

Maximum brake force:

330 kN (74,187 lbf)

Park & Emergency

Spring applied, air released driveline mounted disc.

Maximum brake force:

218 kN (49,008 lbf)

Auxiliary Brake

Automatic engine valve brake. Automatic retardation through electronic activation of wet brake system.

Total Retardation Power

Continuous: 442 kW (593 hp)

Maximum: 854 kW (1,145 hp)

F. SUSPENSION

Semi-independent, leading A-frame supported by hydro-pneumatic suspension struts.

Option: Electronically controlled adaptive suspension with ride height adjustment.

R. SUSPENSION

Pivoting walking beams with laminated rubber suspension blocks.

Option: Comfort Ride suspension walking beams, with two-stage sandwich block.

VEHICLE SPEEDS

1st: 4 mph

2nd: 9 mph

3rd: 12 mph

4th: 17 mph

5th: 22 mph

6th: 29 mph

R: 4 mph
