BELL B20E ARTICULATED DUMP TRUCK

Low ground pressure meets efficient fuel economy. The Bell E-Series Truck line-up boasts an efficient fuel economy. We've got Bell B20E Trucks in stock and ready for your next rental! Give us a call today!

SEE INVENTORY CALL 859.485.8500

bell-b20e-articulated-trucks-for-sale

Tier 4f/ Stage IV Certified

Gross Power: 170 kW (228 hp)

Heaped Capacity: 11 m3 (14.5 yd3)

Rated Payload: 18,000 kg (39,683 lbs)

Operating Weight: 34,493 kg (76,044 lbs)

Bell Logo

Bell B20E LGP Articulated Dump Trucks For Sale

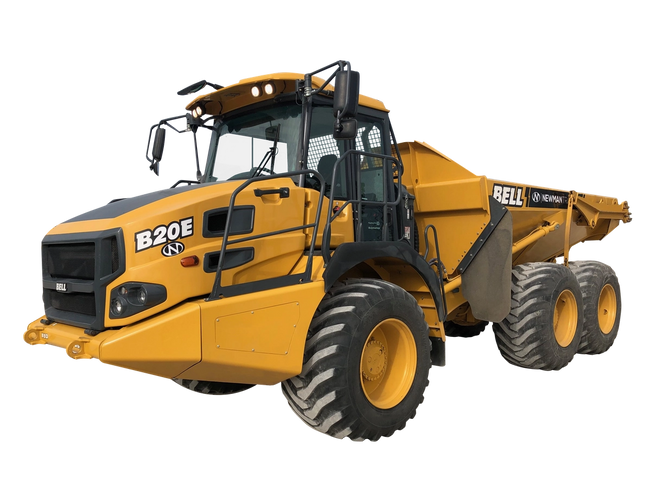

Meet the Bell-B20E Articulating Truck

Our B20E articulated trucks are powered by the Tier 4 final/Stage 4 emissions compliant Mercedes Benz OM934LA (MTU 4R1000) and have a true 6x6 with rear driven axle. Choose between standard 20.5R25 earth-moving tires or low profile, extra wide 800/45 R30.5 tires that provide reduced ground pressure and flotation in extremely muddy or sandy underfoot conditions. Each are also fitted with wet brakes to offer sealed protection against deep mud.

Available for rent, give us a call at 859-485-8500 today to check our latest availability!

A Model Bell B20E Truck Showcase

Dimensions

Diagram of Bell B20E Truck
Newman Tractor Image

Bell Trucks For sale

See Machine Specs

Technical Data - B20E Low Ground Pressure

ENGINE
  1. Manufacturer
  2. Mercedes Benz (MTU)
  3. Model
  4. OM934LA / 4R 1000
  5. Configuration
  6. Inline 4, turbocharged and intercooled.
  7. Gross Power
  8. 170 kW (228 hp) @ 2,200 rpm
  9. Net Power
  10. 161 kW (216 hp) @ 2,200 rpm
  11. Gross Torque
  12. 900 Nm (664 lbft) @ 1,200 - 1,600 rpm
  13. Displacement
  14. 5.1 liters (311 cu.in)
  15. Auxiliary Brake
  16. Jacobs engine brake
  17. Fuel Tank Capacity
  18. 195 liters (52 US gal)
  19. AdBlue® Tank Capacity
  20. 31 liters (8.2 US gal)
TRANSMISSION
  1. Manufacturer
  2. Alison
  3. Model
  4. 3200PR ORS
  5. Configuration
  6. Fully automatic planetary transmission with integral retarder.
  7. Layout
  8. Engine mounted
  9. Gear Layout
  10. Constant meshing planetary gears, clutch operated
  11. Gears
  12. 6 Forward, 1 Reverse
  13. Clutch Type
  14. Hydraulically operated multi-disc
  15. Control Type
  16. Electronic
  17. Torque Control
  18. Hydrodynamic with lock-up in all gears
BRAKING SYSTEM
  1. Service Brake
  2. Dual circuit, full hydraulic actuation wet disc brakes on front and middle axles.
  3. Maximum brake force:
  4. 173 kN (38,892 lbf)
  5. Park & Emergency
  6. Spring applied, air released driveline mounted disc.
  7. Maximum brake force:
  8. 193 kN (43,388 lbf)
  9. Auxiliary Brake
  10. Automatic Jacobs engine brake.
  11. Automatic, adjustable, integral, hydrodynamic transmission retarder. Output shaft speed dependent.
  12. Total Retardation Power
  13. Automatic Jacobs engine brake.
F. SUSPENSION

Semi-independent, leading A-frame supported by hydro-pneumatic suspension struts.

R. SUSPENSION

Pivoting walking beams with laminated rubber suspension blocks.

VEHICLE SPEEDS
  1. 1st: 4 mph
  2. 2nd: 9 mph
  3. 3rd: 12 mph
  4. 4th: 17 mph
  5. 5th: 22 mph
  6. 6th: 29 mph
  7. R: 4 mph
