Bell B50E Articulated Dump Truck

Haul more, for longer at the lowest cost per ton. The New Bell E-Series Truck line-up boasts the best fuel economy in it's class. We've got new Bell B50E Trucks in stock and ready for sale or your next rental! Give us a call today.

SEE INVENTORY CALL 859.888.1813

Tier 4f/ Stage IV Certified

Gross Power: 390 kW (523 hp)

Heaped Capacity: 25 m3 (33 yd3)

Rated Payload: 41,000 kg (90,390 lb)

Operating Weight: 72,877 kg (160,666 lb)

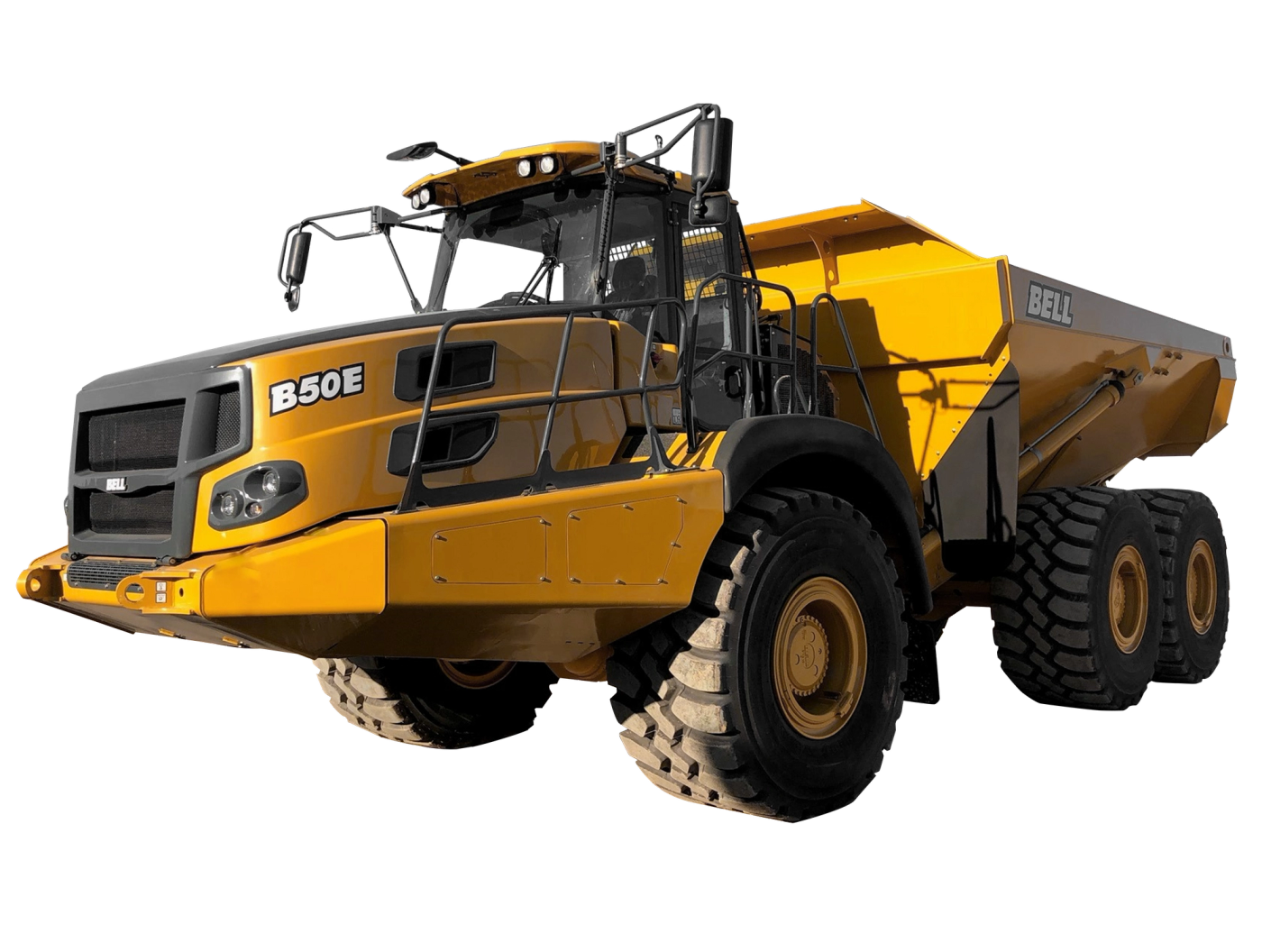

Bell B50E Articulated Dump Trucks For Sale

The Bell B50E performance is next level.

Save money and time on every job with Bell's articulating trucks state-of-the-art technologies, like board weighing and remote production monitoring. Our new B50E articulated dump trucks are rated best in class for their off-road abilities, class for comfort and ease of operation. Newman Tractor is an authorized Bell truck dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for financing deals or for a free on-site demo! 859-485-8500

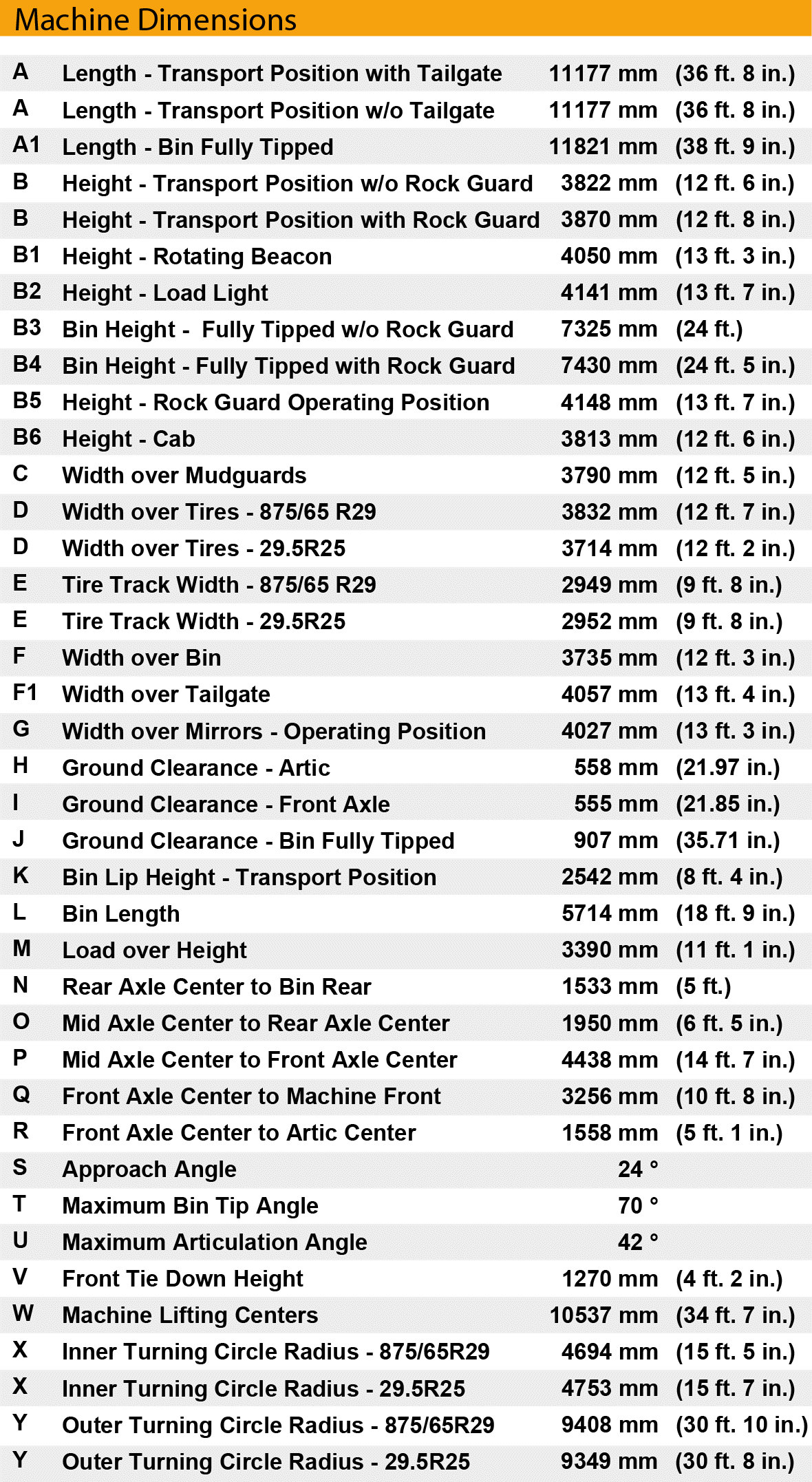

Dimensions

Technical Data - Bell B50E Articulated Dump Truck

ENGINE

Manufacturer

Mercedes Benz (MTU)

Model

OM473LA (MTU 6R 1500)

Configuration

Inline 6, turbocharged and intercooled.

Gross Power

430 kW (577 hp) @ 1,700 rpm

Net Power

405 kW (543 hp) @ 1,700 rpm

Gross Torque

2,750 Nm (2,028 lbft) @ 1,300 rpm

Displacement

15.6 liters (952 cu.in)

Auxiliary Brake

Engine Valve Brake

Fuel Tank Capacity

395 liters (104 US gal)

AdBlue® Tank Capacity

40 liters (11 US gal)

Certification

OM473LA (MTU 6R 1500) meets EU Stage IV / EPA Tier 4 Final emissions regulations.

TRANSMISSION

Manufacturer

Allison

Model

4800 ORS

Configuration

Fully automatic planetary

transmission.

Layout

Engine mounted

Gear Layout

Constant meshing planetary gears, clutch operated

Gears

7 Forward, 1 Reverse

Clutch Type

Hydraulically operated multi-disc

Control Type

Electronic

Torque Control

Hydrodynamic with lock-up in all gears

BRAKING SYSTEM

Service Brake

Dual circuit, full hydraulic actuation wet disc brakes on front, middle and rear axles. Wet brake oil is circulated through a filtration and cooling system.

Maximum brake force:

458 kN (102,962 lbf)

Park & Emergency

Spring applied, air released driveline mounted disc.

Maximum brake force:

215.5 kN (48,446 lbf)

Auxiliary Brake

Automatic engine valve brake. Automatic retardation through electronic activation of wet brake system.

Total Retardation Power

Continuous: 546 kW (732 hp)

Maximum: 963 kW (1,291 hp)

F. SUSPENSION

Semi-independent, leading A-frame supported by hydro-pneumatic suspension struts. Suspension is electronically controlled adaptive suspension with ride height adjustment.

R. SUSPENSION

Pivoting walking beams with laminated rubber suspension blocks.

Option: Comfort Ride suspension walking beams, with two-stage sandwich block.

VEHICLE SPEEDS

1st: 4 mph

2nd: 9 mph

3rd: 12 mph

4th: 17 mph

5th: 22 mph

6th: 29 mph

R: 4 mph
